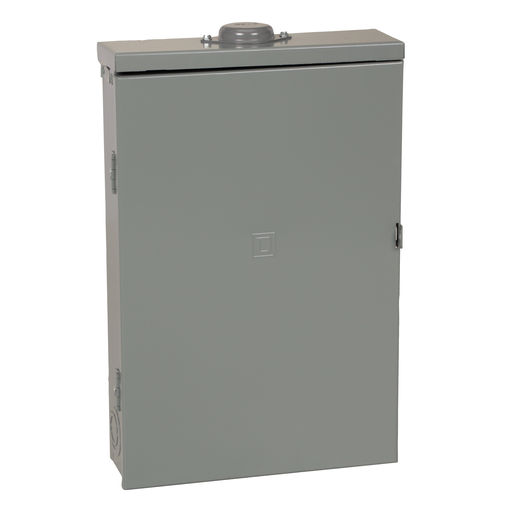

Load center, QO, 1 phase, 24 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, grnd bar, UL
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories such as ground bars which are included here. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main lug and is rated at 125 A and 1 phase. This system provides 24 spaces in a NEMA 3R enclosure and is hub ready. Load center is plug on neutral ready. Ground bar is included but is to be field installed.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | QO124L125PGRB |
|---|---|
| Country of Origin | US |
| UPC | 785901101383 |
| UPC11 | 78590110138 |
| EAN | 0785901101383 |
| Lead Time | 5 |
| Retail Flag | true |
| UNSPSC | 39121101 |
| ECCN | EAR99 |
| HTs Code | 8537109050 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | DE3A |
| Return Indicator | Yes |
| Height | 22.05 inch |
| Width | 14.76 inch |
Characteristics
| Marketing Trade Name | QO |
|---|---|
| Product | Load Center |
| Enclosure Type | Weatherproof enclosure |
| Cover Type | Surface cover |
| Tightening Torque | Main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
| Load Center Type | Main lugs |
| In Rated Current | 125 A |
| Number Of Spaces | 24 |
| Max Short Circuit Current Rating | 65 kA |
| Maximum Number Of Single Pole Circuits | 24 |
| Maximum Number Of Tandem Breakers | 10 |
| Number Of Phases | 1 phase |
| Wire Size | AWG 6...AWG 2/0 aluminium/copper |
| Grounding Bar | Grounding bar included (not installed) |
| Electrical Connection | Lugs |
| Wiring Configuration | 3-wire |
| Busbar Material | Tin plated copper busbar |
| Enclosure Material | Welded galvannealed steel |
| Cover Finish | Baked enamel Gray |
| Box Number | 4R |
| Height | 22.05 in (560 mm) |
| Width | 14.76 in (375 mm) |
| Enclosure Rating | NEMA 3R outdoor |
| Ambient Air Temp For Op | 23 °F (-5 °C) 104 °F (40 °C) |
| Product Certifications | UL Listed |
| Category | 10002 - QO PON 1PH LC,12-60 CKT, N3R |
| Discount Schedule | DE3A |
| GTIN | 00785901101383 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | US |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
