LOAD BREAK SWITCH HANDLE IEC + OPTIONS

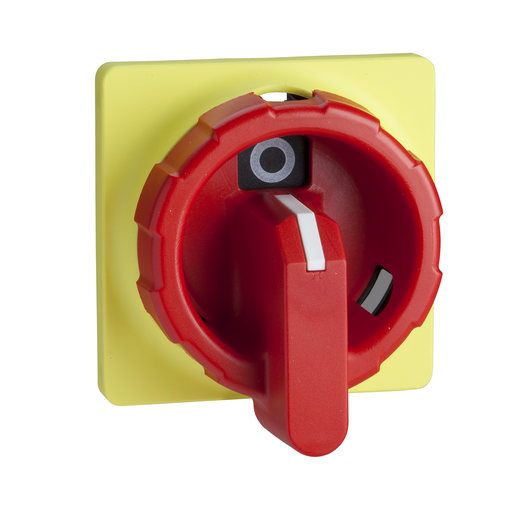

KCF1YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies VN12-VN20 and V02-V2, it provides a red & yellow operator, a 60x60mm front plate, 4 screws fixing, for emergency stop usage. KCF1YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For door mounting, it operates an enclosed switch body VN12-VN20 or V02-V2 directly or through a shaft extension. It provides a red & yellow operator, a 60x60mm front plate and 4 screws fixing. It is intended for emergency stop usage, ensures NEMA type 12 / IP65 protection and is padlockable. Handle operator for door mounting for the operation of a Vario switch disconnector body VN12-VN20 and V02-V2 inside a cabinet. Low profile red handle with 60x60mm yellow plate for emergency stop applications. NEMA type 12 handle operator / ensure IP65 protection. Padlockable with 3 padlocks.
Add to Quote CatalogueSpecifications
| Part Number | KCF1YZ |
|---|---|
| Country of Origin | CZ |
| UPC | 785901575726 |
| UPC11 | 78590157572 |
| EAN | 3389110216936 |
| Availability | N |
| Lead Time | 48 |
| UNSPSC | 39122217 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
| Height | 2.36 inch |
| Width | 2.36 inch |
| Weight | 0.13 pound |
Characteristics
| Range | TeSys |
|---|---|
| Device Short Name | KCF1 |
| Product Or Component Type | Rotary handle |
| Product Compatibility | V02...V2 |
| Handle Colour | Red |
| Handle Front Plate Colour | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 0.16…0.31 in (4…8 mm) |
| Marking | 0 - 1 |
| Fixing Mode | Hole 0.22 in (5.5 mm) |
| Handle Front Plate Dimension | 60 x 60 mm |
| Height | 2.36 in (60 mm) |
| Width | 2.36 in (60 mm) |
| Product Weight | 0.13 lb(US) (0.06 kg) |
| IP Degree Of Protection | IP40 |
| Category | 21730 - V VARIO SWITCH |
| Discount Schedule | CP1 |
| GTIN | 00785901575726 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
