EGX150
Link 150 – ethernet gateway – 2 Ethernetport – 24 V DC and PoE

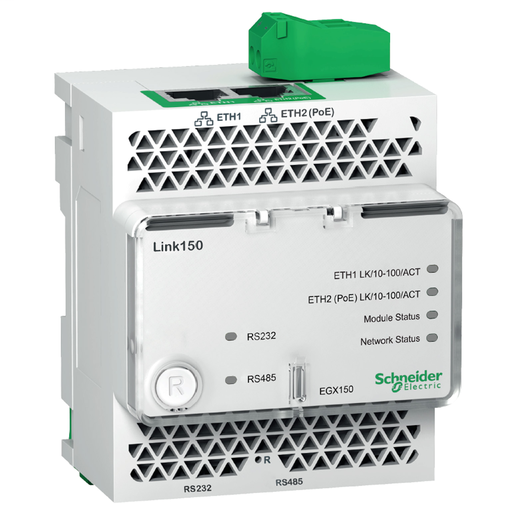

This device is a gateway that provides reliable Ethernet connectivity in most applications, from single building to multi-site enterprises. Part of EcoStruxure, the web service provide user interface for reporting and information. They deliver serial-to-Ethernet connectivity. It received IEC60950, UL61010-2-201 and UL60950 certification. Can be supplied by a 24VDC source or even a Power of Ethernet Class 3 15 Watt. The gateway can be DIN rail mounted in a modular enclosure. Product dimensions are as follows: width 105 millimetres, depth 71 millimetres, height 72 millimetres and product weight 175 g.
Add to Quote CatalogueSpecifications
| Part Number | EGX150 |
|---|---|
| Country of Origin | ID |
| UPC | 785901957195 |
| UPC11 | 78590195719 |
| EAN | 3606480833458 |
| Availability | N |
| Lead Time | 41 |
| ECCN | EAR99 |
| HTs Code | 8517620020 |
| Prop 65 | This product can expose you to chemicals which are known to the State of California to cause Carcinogen and Reproductive harm.For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | PL1 |
| Return Indicator | Yes |
| Depth | 2.83 inch |
| Height | 4.13 inch |
| Width | 2.80 inch |
| Weight | 6.17 ounce |
Characteristics
| Range | Enerlin'X |
|---|---|
| Product Name | Link |
| Product Or Component Type | Gateway |
| Device Short Name | Link150 |
| Device Application | Gateway |
| External Supply | External supply 19.2...26.4 V DC, <500 mA |
| Poe | Power supply device PoE IEEE 802.3af |
| Number Of Port | 2 |
| Communication Gateway | Ethernet/fieldbus |
| Current Consumption | 130 mA 24 V DC via external supply 20 °C) 65 mA 48 V DC via PoE 20 °C) |
| Power Consumption In W | 15 W via PoE |
| Communication Network Type | Ethernet, Ethernet Modbus TCP/IP daisy chain even/odd or none 10/100 Mbit/s Ethernet, PoE 15W (Power over Ethernet) even/odd or none 10/100 Mbit/s Ethernet, FTP even/odd or none 10/100 Mbit/s Ethernet, HTTP even/odd or none 10/100 Mbit/s Ethernet, SNMP even/odd or none 10/100 Mbit/s Ethernet, Modbus TCP/IP even/odd or none 10/100 Mbit/s RS232, Modbus RTU, JBUS, PowerLogic (SY/MAX) even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds RS232, Modbus ASCII even/odd or none 2400, 4800, 9600, 19200, 38400, 56000 or 57600 bauds RS232, Modbus Serial line slave even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds RS485, Modbus RTU, JBUS, PowerLogic (SY/MAX) even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds RS485, Modbus ASCII even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds RS485, Modbus Serial line slave even/odd or none 2400, 4800, 9600, 19200 or 38400 bauds |
| Parity | Even/odd or none |
| Communication Port Protocol | Ethernet Modbus TCP/IP daisy chain 6 kV Modbus TCP/IP 6 kV Modbus RTU, JBUS, PowerLogic (SY/MAX), master - 2 or 4 wires 2.5 kV Modbus ASCII, master - 2 or 4 wires 2.5 kV Modbus RTU and ASCII, slave - 2 or 4 wires 2.5 kV |
| Communication Port Support | RJ45 Ethernet RJ45 RS232 RJ45 RS485 |
| Connections - Terminals | Power supply screw terminal block top) 0.00…0.00 in² (0.2…1.5 mm²) rigid Power supply screw terminal block top) 0.00…0.00 in² (0.2…1.5 mm²) flexible with cable end Power supply screw terminal block top) 0.00…0.00 in² (0.2…1.5 mm²) flexible without cable end |
| Tightening Torque | Power supply 2.66 lbf.in (0.3 N.m) flat 0.12 in (3 mm) |
| Wire Stripping Length | Power supply 0.28 in (7 mm) top connector |
| Mounting Mode | Clip-on |
| Mounting Support | 35 mm DIN rail |
| Product Certifications | CULus FCC Class A CE RCM UL China RoHS CUL |
| Standards | IEC 60950-1 UL 61010-2-201 UL 61010-1 CSA C22.2 No 60950-1 AS/NZS 60950-1 UL 60950-1 IEC 61000-6-2 |
| Depth | 2.83 in (72 mm) |
| Height | 4.13 in (105 mm) |
| Width | 2.80 in (71 mm) |
| Product Weight | 6.17 oz (175 g) |
| Web Services | Web server |
| Local Signalling | LED:Ethernet activity (ETH1) LED:Ethernet activity (ETH2) LED:module status LED:network communication status (Net Status) LED:communication RS232) LED:communication RS485) |
| Compatibility Code | EGX150 |
| Relative Humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree Of Protection | IP40 front panel (in enclosure)) IP30 casing) IP20 terminal block) |
| Mechanical Robustness | Vibrations in operation1 Gn, 5 Hz...150 Hz IEC 60068-2-6 Vibrations de-energized1 Gn, 5 Hz...150 Hz IEC 60068-2-6 Shocks in operation10 Gn for 11 ms IEC 60068-2-27 Shocks de-energized15 Gn for 11 ms IEC 60068-2-27 Jolts de-energized100 jolts/axle, 15 Gn for 6 ms IEC 60068-2-29 Free fall resistance1.2 m |
| Electromagnetic Compatibility | Immunity for industrial environments EN 61000-6-2 Immunity for industrial environments CISPR 24 Conducted and radiated emissions FCC Part 15 class B Conducted and radiated emissions EN 55022 Conducted and radiated emissions CISPR 22 Electrostatic discharge 8 kV air, 6 kV contactB EN 61000-4-2 Radiated RF fields 10 V/m, 80 MHz...1 GHzA EN 61000-4-3 Radiated RF fields 3 V/m, 1 MHz...3 GHzA EN 61000-4-3 Fast transients immunity testlevel 4 EN 61000-4-4 Fast transient burstsclass 3 EN 61000-4-12 Surges level 4 1.2/50 µs)B EN 61000-4-5 Conducted RF disturbances 10 V EN 61000-4-6 Conducted RF disturbances CISPR 11 Magnetic field at power frequency 30 A/mclass 5 EN 61000-4-8 Voltage dips and interruptions immunity test 100 %, 20 msB EN 61000-4-11 Voltage dips and interruptions immunity test 60 %, 200 msB EN 61000-4-11 Voltage dips and interruptions immunity test 30 %, 500 ms EN 61000-4-11 |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Pollution Degree | 2 |
| Category | 09785 - POWERLOGIC SYSTEM CMPNTS |
| Discount Schedule | PL1 |
| GTIN | 00785901957195 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
