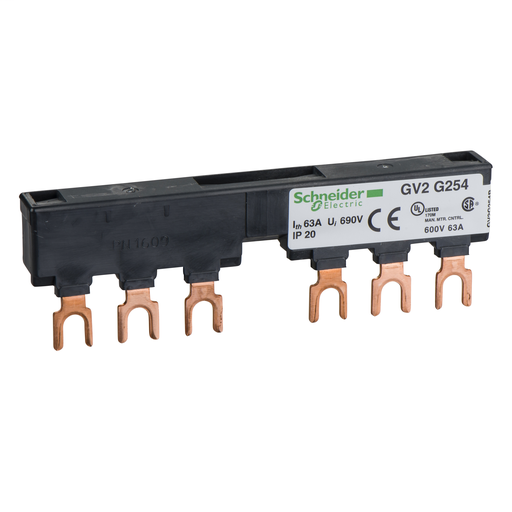

GV2G254
Linergy FT – Comb busbar – 63 A – 2 tap-offs – 54 mm pitch
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
Add to Quote CatalogueSpecifications
| Part Number | GV2G254 |
|---|---|
| Country of Origin | RO |
| UPC | 785901490081 |
| UPC11 | 78590149008 |
| EAN | 3389110555936 |
| Availability | S |
| Lead Time | 3 |
| UNSPSC | 39121521 |
| ECCN | EAR99 |
| HTs Code | 8536904000 |
| RoHS Compliant | Yes |
| Discount Schedule | I11 |
| Return Indicator | Yes |
| Weight | 0.08 pound |
Characteristics
| Range | Linergy |
|---|---|
| Product Name | FT |
| Device Short Name | GV2G |
| Product Or Component Type | Comb busbar |
| Accessory / Separate Part Cate | Connection accessory |
| Poles Description | 3P |
| Range Compatibility | TeSys D TeSys GV2 TeSys K TeSys U |
| Number Of Tap-Offs | 2 |
| Ith Cnvtl Free Air Therm Crrt | 63 A |
| Connection Pitch | 2.13 in (54 mm) |
| Mounting Location | On terminal |
| Ui Rated Insulation Voltage | 690 V |
| Length | 3.86 in (98 mm) |
| Product Weight | 0.08 lb(US) (0.038 kg) |
| Category | 22367 - MANUAL STR PROTECTOR - GV2 |
| Discount Schedule | I11 |
| GTIN | 00785901490081 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | RO |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
