Line-Voltage Fan Coil Controller BACnet – rel humidity – WH

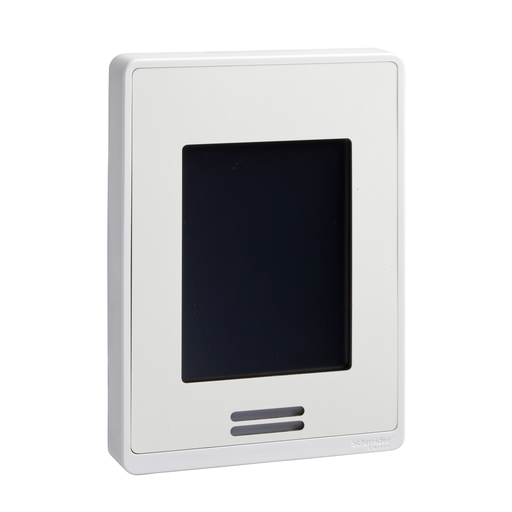

SER8300 Series room controllers are used for Line Voltage Fan Coil Unit control. The room controllers rated supply voltage is 7V DC at 2.4watts. The room controller is colored white and is equiped with a communication port that uses BACnet MS/TP protocol. Its Room and Outdoor Air Temperature Display Range is between -40 and 50 oC. The measurement accuracy is +/- 0.5%. The temperature setting range is 12 to 37.5oC for cooling and 4.5 to 32 oC for heating. The room controller is equiped with 3 digital inputs. The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B, ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2. The product follows the directives: 2014/30/EU – electromagnetic compatibility, 2014/35/EU – low voltage directive, 2014/53/EU – radio equipment directive. The ambient air temperature for operation is between 0 and 50oC. The relative humidity for operating or storage is between 0 and 75% non condensing. The humidity reading range is 10 to 90% RH non-condensing.
Add to Quote CatalogueSpecifications
| Part Number | SER8350A0B11 |
|---|---|
| Country of Origin | MX |
| UPC | 785901747260 |
| UPC11 | 78590174726 |
| EAN | 3606480771606 |
| Availability | N |
| Lead Time | 6 |
| ECCN | EAR99 |
| HTs Code | 9032100030 |
| Prop 65 | This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | DE10 |
| Return Indicator | No |
| Depth | 0.98 inch |
| Height | 4.72 inch |
| Width | 3.39 inch |
| Weight | 11.99 ounce |
Characteristics
| Range | EcoStruxure Building Expert |
|---|---|
| Product Name | SE8000 Series |
| Device Short Name | SER8300 |
| Product Or Component Type | Room controller |
| Sensor Type | 10 kOhm T2 NTC thermistor +/- 0.1 °C Single point calibrated bulk polymer RH sensor +/- 5 % |
| Colour Tint | White |
| Device Application | Low voltage fan coil |
| [Us] Rated Supply Voltage | 7 V DC +/- 10 % |
| Network Frequency | 60 Hz 50 Hz |
| In Rated Current | 4 A |
| Communication Port Protocol | BACnet MS/TP |
| Function Available | Economiser Humidity control Scheduling not included |
| Setpoint Range Cooling | 54…100 °F (12…37.5 °C) cooling 40…90 °F (4.5…32 °C) heating |
| Temperature Display Range | -40…122 °F (-40…50 °C) |
| Measurement Accuracy | Temperature +/- 0.5 °C, Humidity +/- 5 %, 20...80 % RH non-condensing) |
| Discrete Input Type | 3 discrete input |
| Surface Finish | Matt |
| Surface Treatment | Untreated |
| Awg Gauge | AWG 24...AWG 18 |
| Width | 3.39 in (86 mm) |
| Depth | 0.98 in (25 mm) |
| Height | 4.72 in (120 mm) |
| Product Weight | 11.99 oz (340 g) |
| Market Segment | Lodging Small commercial Hotel Buildings Healthcare Non-critical buildings Office Residential School |
| Dehumidification Setpoint Range | 30…95 % |
| Relative Humidity | 0…95 % |
| Ambient Air Temp For Op | 32…122 °F (0…50 °C) |
| Ambient Air Temp For Storage | -22…122 °F (-30…50 °C) |
| Standards | IEC 61326-1:2005 FCC part 15 subpart B ICES-003 ETSI EN 301 328:V1.8.1 ETSI EN 301 489-1:v1.9.2 FCC part 15 subpart C RSS 210 issue 8 IEC 61010-1:ed. 3 |
| Directives | 2014/30/EU - electromagnetic compatibility 2014/35/EU - low voltage directive 2014/53/EU - radio equipment directive |
| Category | 21009 - SBS ROOM CONTROLLERS SE8000 |
| Discount Schedule | DE10 |
| GTIN | 00785901747260 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
