| Range Of Product |
OsiSense XC |
| Series Name |
Standard format |
| Product Or Component Type |

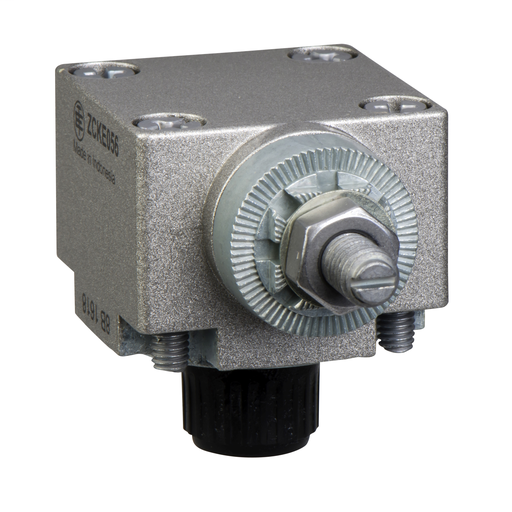

Limit switch head |
| Device Short Name |
ZCKE |
| Head Type |
Rotary head |
| Product Compatibility |
XCKJ |
| Associated Lever |
ZCKY13
ZCKY52
ZCKY53
ZCKY11
ZCKY59
ZCKY41
ZCKY14
ZCKY81
ZCKY43
ZCKY51
ZCKY91 |
| Associated Body |
ZCKJ21
ZCKJ2
ZCKJ1
ZCKJD35H7
ZCKJD39H29
ZCKJ4104
ZCKJD37H29
ZCKJD35
ZCKJ6
ZCKJ5H29
ZCKJ5
ZCKJ4104H29
ZCKJ9
ZCKJ41
ZCKJ6H7
ZCKJ1H29
ZCKJD39H7
ZCKJ11H7
ZCKJ41H29
ZCKJ41H7
ZCKJD31H29
ZCKJ4H7
ZCKJ7H29
ZCKJ8
ZCKJD31H7
ZCKJ7
ZCKJ21H7
ZCKJ11
ZCKJ7H7
ZCKJ11H29
ZCKJ8H7
ZCKJ2H7
ZCKJ2H29
ZCKJ9H29
ZCKJ6H29
ZCKJ1H7
ZCKJ404
ZCKJD37
ZCKJ8H29
ZCKJ404H7
ZCKJ4104H7
ZCKJ5H7
ZCKJ404H29
ZCKJD39
ZCKJ9H7
ZCKJD35H29
ZCKJ4H29
ZCKJ21H29
ZCKJ4
ZCKJD37H7
ZCKJD31 |
| Movement Of Operating Head |
Rotary |
| Type Of Operator |
Without operating lever spring return |
| Type Of Approach |
Lateral approach, 1 or 2 programmable direction |
| Switch Actuation |
From left and/or right
CW and/or CCW |
| Positive Opening |
With |
| Product Weight |
0.36 lb(US) (0.165 kg) |
| Head Material |
Metal |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Environmental Characteristic |
Low temperature |
| Category |
22411 - LIMIT SWITCHES,IEC,XCKJ |
| Discount Schedule |
T |
| GTIN |
00785901256397 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
ID |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| Warranty |
18 months |
