ZCE06

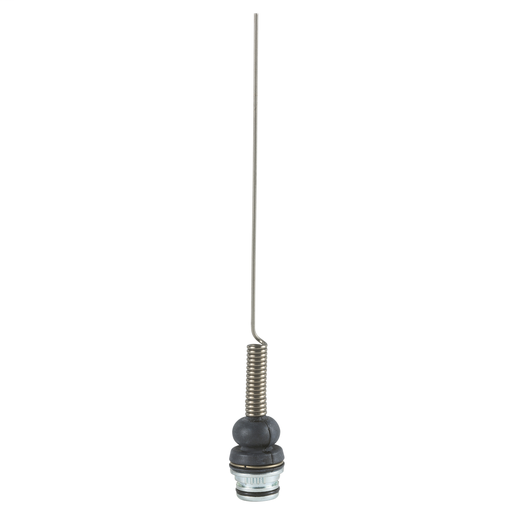

Limit switch head ZCE – cat’s whisker with nitrile boot
This ZCE standard head has a “cat’s whiskers” and a nitrile boot. It can be matched with any body from the XCKD, XCKP and XCKT ranges.
Brand: Telemecanique
Add to Quote CatalogueSpecifications
| Part Number | ZCE06 |
|---|---|
| Country of Origin | ID |
| UPC | 785901497479 |
| UPC11 | 78590149747 |
| EAN | 3389110191103 |
| Availability | S |
| Lead Time | 3 |
| UNSPSC | 39122213 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | T |
| Return Indicator | Yes |
Characteristics
| Range Of Product | OsiSense XC |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch head |
| Device Short Name | ZCE |
| Head Type | Multi-directional head |
| Product Compatibility | XCKD XCKP XCKT XCMD |
| Associated Body | ZCMD25L5 ZCD26 ZCD39 ZCMD21C12 ZCMD39L5 ZCP31 ZCMD37L5 ZCMD29L5 ZCMD21L2 ZCT21G11 ZCT27P16 ZCMD29C12 ZCT25G11 ZCT21P16 ZCMD25L1 ZCD29 ZCD21M12 ZCMD29L2 ZCT26P16 ZCMD21L1 ZCMD29L1 ZCP21M12 ZCT28N12 ZCMD61C12 ZCMD37L2 ZCMD25L2 ZCP35 ZCMD41L5 ZCT26N12 ZCMD81L2 ZCD35 ZCD29M12 ZCP39 ZCMD39L2 ZCT27G11 ZCMD69C12 ZCT25N12 ZCMD41L1 ZCP26 ZCD25 ZCD31 ZCMD39L1 ZCMD37L1 ZCMD81L5 ZCT26G11 ZCD37 ZCMD41L2 ZCT27N12 ZCMD21M12 ZCT28G11 ZCD28 ZCMD61M12 ZCP29 ZCMD21L08U78 ZCMD21L08R12 ZCP25 ZCT25P16 ZCP29M12 ZCD27 ZCP28 ZCP27 ZCT21N12 ZCMD81L1 ZCP37 ZCP21 ZCMD21L5 ZCD21 ZCT28P16 |
| Movement Of Operating Head | Multi-directional |
| Type Of Operator | Cat''''s whisker spring return metal with nitrile boot) |
| Type Of Approach | Multi-directional approach |
| Switch Actuation | By any moving part |
| Positive Opening | Without |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Environmental Characteristic | Standard environment |
| Category | 22413 - LIMIT SWITCH, IEC, MINIATURE |
| Discount Schedule | T |
| GTIN | 00785901497479 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
