ZC2JE65

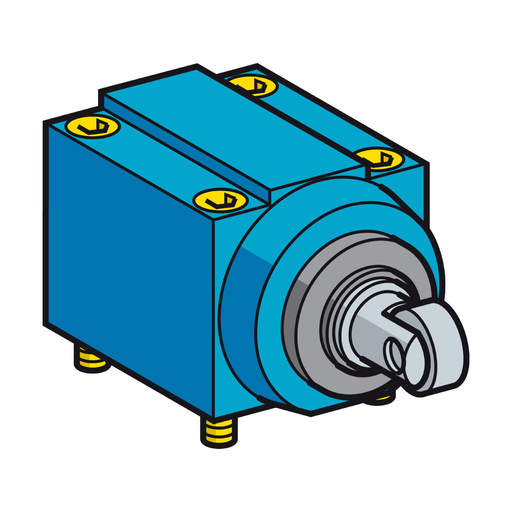

Limit switch head ZC2J – side steel roller plunger vertical
Specifications
| Part Number | ZC2JE65 |
|---|---|
| Country of Origin | FR |
| UPC | 785901102854 |
| UPC11 | 78590110285 |
| EAN | 3389110324167 |
| Availability | N |
| Lead Time | 20 |
| UNSPSC | 39122213 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | T |
| Return Indicator | No |
| Weight | 0.54 pound |
Characteristics
| Range Of Product | OsiSense XC |
|---|---|
| Series Name | Special format |
| Product Or Component Type | Limit switch head |
| Device Short Name | ZC2J |
| Head Type | Plunger head |
| Product Compatibility | XC2J |
| Associated Body | ZC2JC2 ZC2JD2 ZC2JC28 ZC2JC18 ZC2JC1 ZC2JD1 |
| Movement Of Operating Head | Linear |
| Type Of Operator | Side roller plunger spring return metal with vertical roller) |
| Type Of Approach | Lateral approach, 2 directions |
| Switch Actuation | By 30° cam |
| Positive Opening | Without |
| Product Weight | 0.54 lb(US) (0.245 kg) |
| Head Material | Metal |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Environmental Characteristic | Standard environment |
| Category | 22449 - LIMIT SWITCHES,ACCESSORIES |
| Discount Schedule | T |
| GTIN | 00785901102854 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
