| Range Of Product |
OsiSense XC |
| Series Name |
Standard format |
| Product Or Component Type |

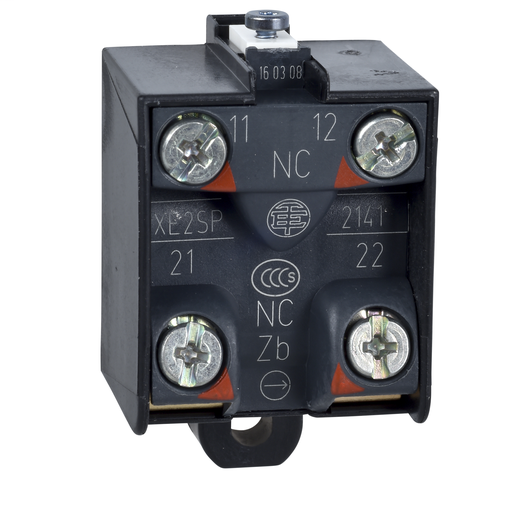

Limit switch contact block |
| Device Short Name |
XE2S |
| Associated Body |
ZCKJ9
ZCKS9
ZCKM9
ZCD29
ZCP29 |
| Number Of Poles |
2 |
| Contacts Type And Composition |
2 NC |
| Contact Operation |
Snap action |
| Product Compatibility |
XCKM
XCKJ
XCKP
XCKS
XCKD |
| Electrical Connection |
Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contacts Insulation Form |
Zb |
| Contacts Material |
Silver plated contacts |
| Positive Opening |
With |
| Minimum Actuation Speed |
0.01 mm/s |
| Contact Code Designation |
A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A |
| Resistance Across Terminals |
25 mOhm IEC 60255-7 category 3 |
| Ui Rated Insulation Voltage |
300 VUL 508
500 V 3)IEC 60947-1
300 VCSA C22.2 No 14 |
| Uimp Rated Imp Wstd Voltage |
6 kV IEC 60664
6 kV IEC 60947-1 |
| Short-Circuit Protection |
10 A cartridge fuse gG |
| Electrical Durability |
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Category |
22449 - LIMIT SWITCHES,ACCESSORIES |
| Discount Schedule |
T |
| GTIN |
00785901298373 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| Warranty |
18 months |
