ZB5AW063

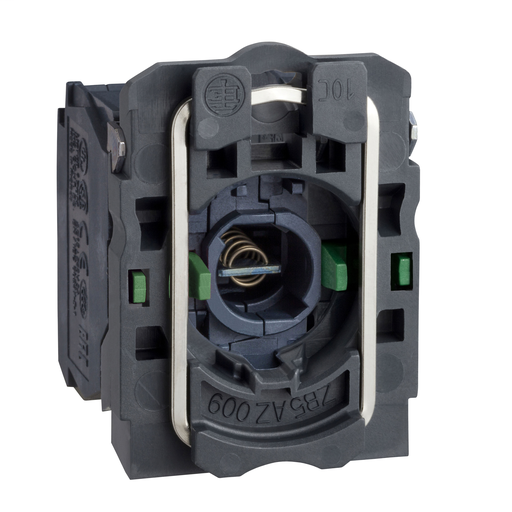

Light block with body/fixing collar for BA9s bulb 250V 2NO
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AW063 |
|---|---|
| Country of Origin | FR |
| UPC | 785901376408 |
| UPC11 | 78590137640 |
| EAN | 3389110909753 |
| Availability | N |
| Lead Time | 22 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8536509035 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.09 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Complete body/contact assembly and light block |
| Device Short Name | ZB5 |
| Fixing Collar Material | Plastic |
| Sale Per Indivisible Qty | 1 |
| Head Type | Standard |
| Contacts Type And Composition | 2 NO |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Light Source | Bulb not included |
| Bulb Base | BA 9s |
| Light Block Supply | Direct <2.4 W |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.65 in (42 mm) |
| Cad Overall Depth | 1.26 in (32 mm) |
| Terminals Description ISO n°1 | (11-12)NC |
| Product Weight | 0.09 lb(US) (0.041 kg) |
| Contacts Usage | Standard |
| Positive Opening | Without |
| Operating Travel | 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel) |
| Operating Force | 2.3 N NO changing electrical state |
| Operating Torque | 0.44 lbf.in (0.05 N.m) NO changing electrical state |
| Mechanical Durability | 5000000 cycles |
| Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt | 10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 6 kV EN 60947-1 |
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Signalling Type | Steady |
| Us Rated Supply Voltage | <= 250 V |
| Device Presentation | Basic sub-assemblies |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class | Class II IEC 60536 |
| Standards | UL 508 EN/IEC 60947-1 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C8201-1 |
| Product Certifications | CSA GL DNV BV UL Listed LROS (Lloyds register of shipping) RINA |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901376408 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
