ZB4BV156

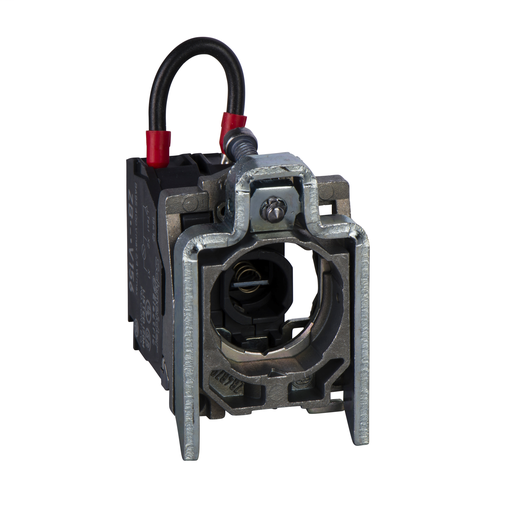

Light block with body/fixing collar for BA9s bulb 250V
This Harmony XB4, complete light body with 3-terminal “test” function operates with BA9s base fitting. It has a metal body and is compatible with Harmony XB4 pilot lights. It is supplied without bulb (incandescent, neon or LED) 2.4 W maxi, not included. It is supplied with 250V AC/DC maxi. It is easily installed and replaced on compatible pilot light via clip together assembly and connected with simple screw-clamp connections. It weighs 62g and its dimensions are, 30mm wide, 47mm high, 37mm deep. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications.
Add to Quote CatalogueSpecifications
| Part Number | ZB4BV156 |
|---|---|
| UPC | 389110071689 |
| UPC11 | 38911007168 |
| EAN | 3389110071689 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Weight | 0.14 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Complete body/light block assembly |
| Device Short Name | ZB4 |
| Fixing Collar Material | Zamak |
| Sale Per Indivisible Qty | 1 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light Source | Bulb not included |
| Bulb Base | BA 9s |
| Light Block Supply | Direct <2.4 W |
| Us Rated Supply Voltage | <= 250 V |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.85 in (47 mm) |
| Cad Overall Depth | 1.46 in (37 mm) |
| Terminals Description ISO n°1 | (X1-X2)PL |
| Product Weight | 0.14 lb(US) (0.062 kg) |
| Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Ui Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage | 6 kV EN 60947-1 |
| Signalling Type | Steady |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class | Class I IEC 60536 |
| Standards | CSA C22.2 No 14 EN/IEC 60947-1 UL 508 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C8201-5-1 JIS C8201-1 |
| Product Certifications | GL BV UL Listed DNV CSA RINA LROS (Lloyds register of shipping) |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN | 03389110071689 |
| Nbr. Of Units In Pkg. | 1 |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
