| Range Of Product |
Harmony XB4 |
| Product Or Component Type |

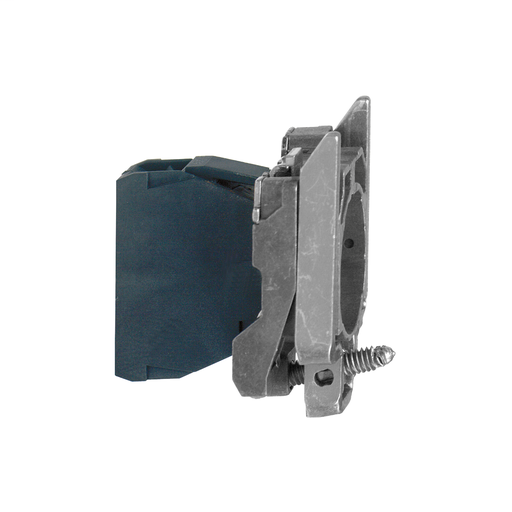

Complete body/light block assembly |
| Device Short Name |
ZB4 |
| Fixing Collar Material |
Zamak |
| Sale Per Indivisible Qty |
1 |
| Connections - Terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light Source |
Bulb not included |
| Bulb Base |
BA 9s |
| Us Rated Supply Voltage |
110...120 V AC 50/60 Hz |
| Tightening Torque |
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head |
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm |
| Ui Rated Insulation Voltage |
600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage |
6 kV EN 60947-1 |
| Signalling Type |
Flashing |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class I IEC 60536 |
| Standards |
EN/IEC 60947-5-4
EN/IEC 60947-5-5
EN/IEC 60947-1
EN/IEC 60947-5-1
UL 508
JIS C8201-5-1
CSA C22.2 No 14
JIS C8201-1 |
| Product Certifications |
CSA
DNV
RINA
BV
LROS (Lloyds register of shipping)
GL
UL Listed |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| GTIN |
03389110901047 |
| Warranty |
18 months |
