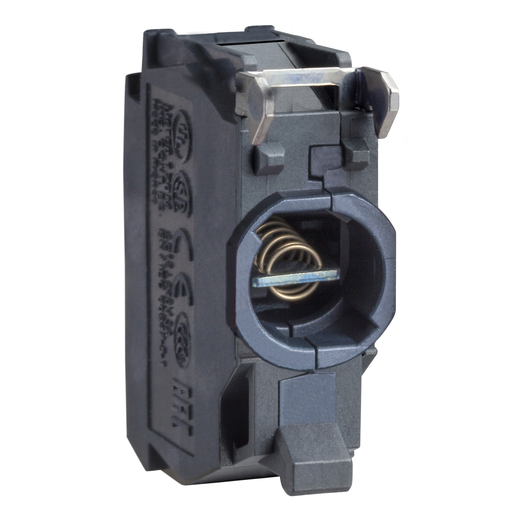

This Harmony ZB, light block without bulb operates with BA9s Base. It is supplied with 250V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by connected with BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Add to Quote CataloguePart Number | ZBV6 |
---|---|
Country of Origin | FR |
UPC | 785901355373 |
UPC11 | 78590135537 |
EAN | 3389110089608 |
Availability | S |
Lead Time | 48 |
UNSPSC | 39122216 |
ECCN | EAR99 |
HTs Code | 8531809026 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | CS2 |
Return Indicator | Yes |
Weight | 0.04 pound |
Range Of Product | Harmony XB5 Harmony XB4 |
---|---|
Product Or Component Type | Light block |
Device Short Name | ZBV |
Sale Per Indivisible Qty | 5 |
Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
Signalling Type | Steady |
Light Source | Bulb not included |
Bulb Base | BA 9s |
Light Block Supply | Direct |
Us Rated Supply Voltage | <= 250 V |
Product Weight | 0.04 lb(US) (0.016 kg) |
Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
Shape Of Screw Head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
Service Life | 100000 h at rated voltage and 25 °C |
Surge Withstand | 1 kV IEC 61000-4-5 |
Mounting Of Block | Front mounting |
Electrical Composition Code | M7 M8 MF2 P3 PF2 |
Device Presentation | Basic element |
Protective Treatment | TH |
Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
IP Degree Of Protection | IP20 IEC 60529 |
Standards | EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 EN/IEC 60947-5-5 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 |
Product Certifications | CSA UL Listed |
Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
Resist To Electromagn Fields | 9.14 V/m (10 V/m) IEC 61000-4-3 |
Resist Electrostatic Dischrg | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
Electromagnetic Emission | Class B IEC 55011 |
Us Rated Supply Voltage | 250 V |
Category | 22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
Discount Schedule | CS2 |
GTIN | 00785901355373 |
Nbr. Of Units In Pkg. | 5 |
Country Of Origin | FR |
Green Premium Status | Green Premium product |
REACh Free Of SVHC | Yes |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Mercury Free | Yes |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Warranty | 18 months |
