| Range Of Product |
Harmony XB4
Harmony XB5 |
| Product Or Component Type |

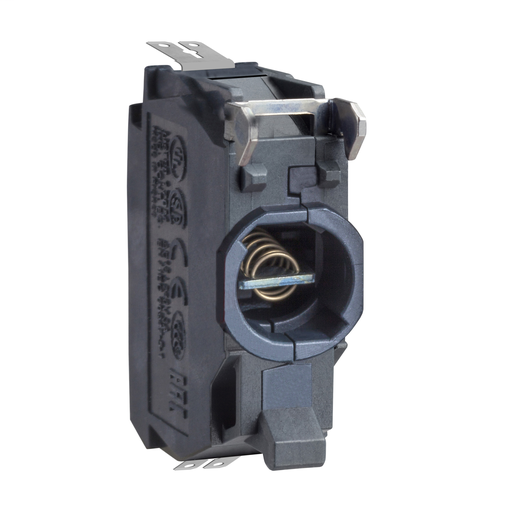

Light block |
| Device Short Name |
ZBV |
| Sale Per Indivisible Qty |
5 |
| Connections - Terminals |
Faston connector 1 x 6.35 mm
Faston connector 2 x 2.8 mm |
| Signalling Type |
Steady |
| Light Source |
Bulb not included |
| Bulb Base |
BA 9s |
| Light Block Supply |
Direct |
| Us Rated Supply Voltage |
<= 250 V |
| Product Weight |
0.04 lb(US) (0.017 kg) |
| Service Life |
100000 h at rated voltage and 25 °C |
| Surge Withstand |
1 kV IEC 61000-4-5 |
| Mounting Of Block |
Front mounting |
| Electrical Composition Code |
M7
M8
MF2
P3
PF2 |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Standards |
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-1
UL 508
JIS C8201-5-1
EN/IEC 60947-5-5
JIS C8201-1 |
| Resistance To Fast Transients |
2 kV IEC 61000-4-4 |
| Resist To Electromagn Fields |
9.14 V/m (10 V/m) IEC 61000-4-3 |
| Resist Electrostatic Dischrg |
6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic Emission |
Class B IEC 55011 |
| Us Rated Supply Voltage |
250 V |
| Category |
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901742586 |
| Nbr. Of Units In Pkg. |
5 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
