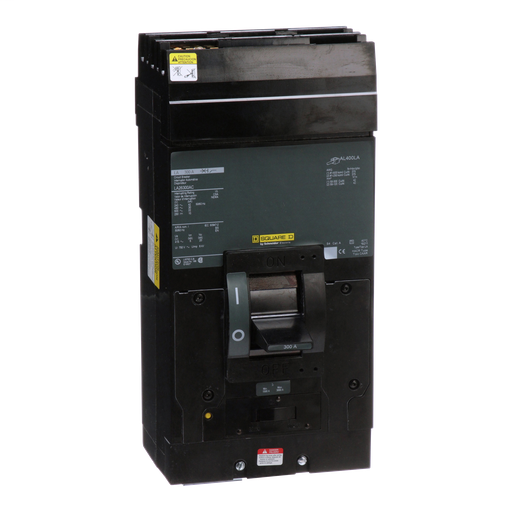

LHP36400MB - LH MOLDED CASE CIRCUIT BREAKER, 600V, 400A, 3P, SHORT HANDLE

LHP36400MB

Add to Quote Catalogue

Part Number	LHP36400MB
Country of Origin	MX
UPC	785901205128
UPC11	78590120512
EAN	0785901205128
Availability	S
UNSPSC	39121601
HTs Code	8536200020
Prop 65	This product can expose you to chemicals including: DIDP and DINP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant	Yes
Discount Schedule	DE2
Return Indicator	Yes
Depth	4 inch
Height	12.5 inch
Width	6 inch

Product Or Component Type	Circuit breaker
Range Of Product	PowerPact L
Trip Unit Type	Thermal-magnetic
Rating Code	H
Options	Handle
In Rated Current	400 A
Number Of Poles	3P
Interrupt Rating	25 kA 600 V AC 65 kA 240 V AC 35 kA 480 V AC 50 kA 250 V DC
Ue Rated Operational Voltage	600 V AC
Mounting Mode	Unit mount
Electrical Connection	Lugs load Terminal line
Wire Gauge	AWG 1...600 kcmil aluminium/copper)1 AWG 1...250 kcmil aluminium/copper)2
Terminal Type	AL400LA
Operator Profile	Short lever
Height	12.5 in (317.50 mm)
Width	6 in (152.40 mm)
Depth	4 in (101.60 mm)
Tightening Torque	115.06 lbf.in (13 N.m) 0.07…0.47 in² (42…304 mm²) AWG 1...600 kcmil) 115.06 lbf.in (13 N.m) 0.07…0.20 in² (42…127 mm²) AWG 1...250 kcmil)
Product Certifications	UL Listed CSA
Category	00935 - LAL/LHL BRKR, SW, MAG-GARD
Discount Schedule	DE2
GTIN	00785901205128
Nbr. Of Units In Pkg.	1
Country Of Origin	MX
Green Premium Status	Green Premium product
EU RoHs Directive	Compliant
Mercury Free	Yes
Pvc Free	Yes
Halogen Content Performance	Halogen free plastic parts product
Warranty	18 months
