| Range Of Product |
Harmony XVB Universal |
| Product Or Component Type |

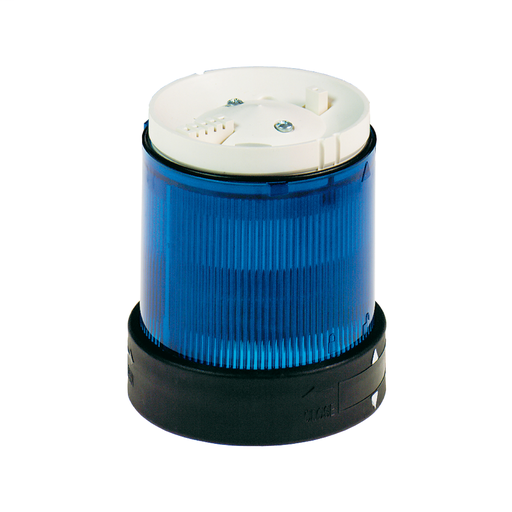

Indicator bank |
| Beacon/Indicator Bk Unit Type |
Illuminated unit |
| Signalling Type |
Steady |
| Mounting Diameter |
2.76 in (70 mm) |
| Component Name |
XVBC |
| Material |
Polycarbonate |
| Light Source |
LED, blue |
| Bulb Type |
LED BA 15d |
| Us Rated Supply Voltage |
<= 250 V |
| Assembly Style |
Customer assembly, up to 5 units |
| Power Dissipation In W |
7 W |
| Connections - Terminals |
Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Uimp Rated Imp Wstd Voltage |
4 kV IEC 60947-1 |
| Cad Overall Width |
2.76 in (70 mm) |
| Cad Overall Height |
2.48 in (63 mm) |
| Cad Overall Depth |
2.76 in (70 mm) |
| Product Weight |
0.31 lb(US) (0.14 kg) |
| Pollution Degree |
2 |
| Product Certifications |
GOST
CCC
CSA C22-2 No 14
UL 508 |
| Standards |
EN/IEC 60947-5-1 |
| Protective Treatment |
TC |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…122 °F (-25…50 °C) LED
-13…158 °F (-25…70 °C) incandescent |
| Electrical Shock Protect Class |
Class I on support tube IEC 61140
Class II on base unit IEC 61140 |
| IP Degree Of Protection |
IP65 on fixing base XVBZ0. IEC 60529
IP66 on base unit IEC 60529 |
| Nema Degree Of Protection |
NEMA 4X UL 508 indoor) |
| Category |
22611 - XVB-STACKLIGHTS |
| Discount Schedule |
XV |
| GTIN |
00785901769316 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
