| Product Or Component Type |

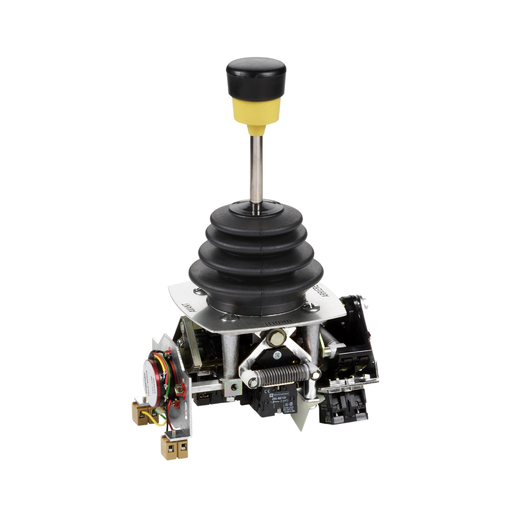

Complete joystick controller |
| Product Specific Application |
Medium hoisting applications |
| Device Short Name |
XKDF |
| Sale Per Indivisible Qty |
1 |
| Bezel Material |
Metal |
| Fixing Collar Material |
Metal |
| Protective Treatment |
TC |
| Operator Pos Information |
All positions |
| Positive Opening |
Slow break, double-break with |
| Connections - Terminals |
Captive screw clamp terminals, <= 2 x 1.5 mm² with cable end
Captive screw clamp terminals, <= 1 x 2.5 mm² without cable end
Captive screw clamp terminals, >= 1 x 0.5 mm² |
| Short-Circuit Protection |
10 A cartridge fuse EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A EN/IEC 60947-5-1
10 A CSA C22.2 No 14 |
| Ui Rated Insulation Voltage |
500 V 3)IEC 60947-1 |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-4…158 °F (-20…70 °C) |
| Overvoltage Category |
Class I IEC 61140 |
| IP Degree Of Protection |
IP54 IEC 60529 |
| Standards |
EN/IEC 60947-5-1
CSA C22.2 No 14 |
| Product Certifications |
CSA
EAC
CCC |
| Mechanical Durability |
3000000 cycles |
| Vibration Resistance |
2 gn 10…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
15 gn 11 ms) IEC 60068-2-27 |
| Category |
22474 - PUSHBUTTON,CRANE JOYSTICKS |
| Discount Schedule |
I |
| GTIN |
00785901303374 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Warranty |
18 months |
