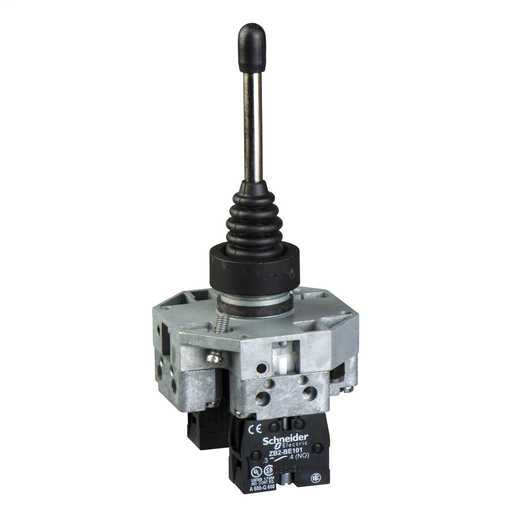

XDPA1010C1
Joystick controller XDP – 2 directions – 1 NO contact per direction
Specifications
| Part Number | XDPA1010C1 |
|---|---|
| Country of Origin | FR |
| UPC | 785901094302 |
| UPC11 | 78590109430 |
| EAN | 0785901094302 |
| Availability | N |
| Lead Time | 5 |
| UNSPSC | 39122227 |
| HTs Code | 8536509065 |
| Discount Schedule | I |
| Return Indicator | No |
| Depth | 1.73 inch |
| Height | 6.24 inch |
| Width | 2.56 inch |
| Weight | 1.10 pound |
Characteristics
| Range Of Product | Harmony XK |
|---|---|
| Product Or Component Type | Complete joystick controller |
| Device Short Name | XDP |
| Mounting Diameter | 1.89 in (48 mm) |
| Bezel Material | Plastic |
| Sale Per Indivisible Qty | 1 |
| Operator Pos Information | 2 positions |
| Operator Dir Information | 1 direction |
| Contacts Type And Composition | 2 NO |
| Contacts Usage | Standard |
| Mechanical Durability | 1000000 cycles |
| Return | Spring return |
| Height | 6.24 in (158.6 mm) |
| Width | 2.56 in (65 mm) |
| Depth | 1.73 in (44 mm) |
| Product Weight | 1.10 lb(US) (0.5 kg) |
| Standards | EN/IEC 60947-5-5 UL 508 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C 4520 EN/IEC 60947-5-1 |
| Ambient Air Temp For Op | -40…140 °F (-40…60 °C) |
| IP Degree Of Protection | IP65 |
| Category | 22476 - JOYSTICKS (NOT CRANE) |
| Discount Schedule | I |
| GTIN | 00785901094302 |
| Country Of Origin | FR |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
