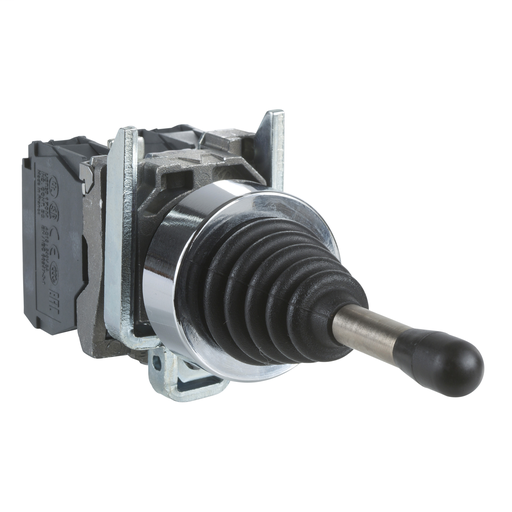

Joystick controller Ø22 4-direction stay put 1NO per direction
XD4PA143
Joystick controller Ø22 4-direction stay put 1NO per direction
Specifications
Part Number XD4PA143
UPC 389110801934
UPC11 38911080193
EAN 3389110801934
Weight 0.29 pound
Characteristics
Range Of Product Harmony XDA
Product Or Component Type Joystick controller
Device Short Name XD4
Bezel Material Chromium plated metal
Fixing Collar Material Zamak
Mounting Diameter 0.87 in (22 mm)
Sale Per Indivisible Qty 1
Type Of Operator Stay put, long operating shaft 2.13 in (54 mm)
Operator Pos Information 5 positions
Operator Dir Information 4 directions
Contacts Type And Composition 1 NO
Contact Operation Slow-break
Connections - Terminals Faston connector 1 x 6.35 mm Faston connector 2 x 2.8 mm
Product Weight 0.29 lb(US) (0.133 kg)
Resistance High Press Washer 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Shape Of Signaling Unit Head Round
Notch Per Direction 1
Contacts Usage Standard
Positive Opening Without
Mechanical Durability 1000000 cycles
Contacts Material Silver alloy (Ag/Ni)
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Ith Cnvtl Free Air Therm Crrt 10 A EN/IEC 60947-5-1
Ui Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
Uimp Rated Imp Wstd Voltage 6 kV EN 60947-1
Ie Rated Operational Current 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Electrical Reliability Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Device Presentation Complete product
Protective Treatment TH
Ambient Air Temp For Storage -40…158 °F (-40…70 °C)
Ambient Air Temp For Op -13…158 °F (-25…70 °C)
Electrical Shock Protect Class Class I IEC 60536
IP Degree Of Protection IP66 IEC 60529
Nema Degree Of Protection NEMA 13 NEMA 4X
IK Degree Of Protection IK03 IEC 50102
Standards CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-5-5 UL 508 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-1
Product Certifications RINA GL LROS (Lloyds register of shipping) CSA DNV BV UL Listed
Vibration Resistance 5 gn 2…500 Hz)IEC 60068-2-6
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
GTIN 03389110801934
Warranty 18 months
