RMCA61BD

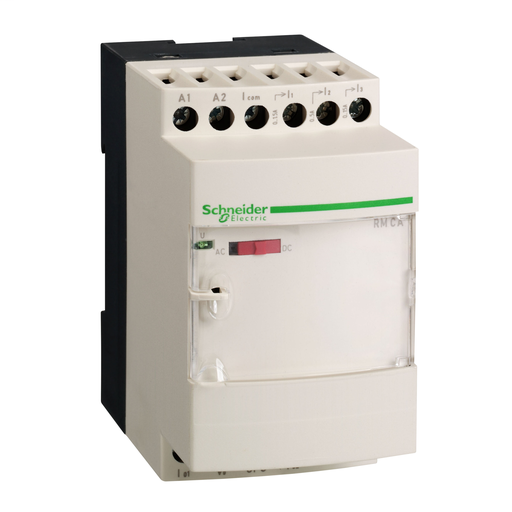

Isoled Analog Converter – 0..5 A – for Zelio Analog
This voltage/current converter is part of the range of Zelio Analog interfaces. It allows conversion of electrical power signals, both AC and DC. Its supply voltage is 24V DC, isolated. It features for current inputs, a range of 0A to 15A (AC/DC) and for outputs, a switchable voltage/current range of 0V to 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use.
Add to Quote CatalogueSpecifications
| Part Number | RMCA61BD |
|---|---|
| Country of Origin | ID |
| UPC | 785901899501 |
| UPC11 | 78590189950 |
| EAN | 3389110108880 |
| Availability | N |
| Lead Time | 43 |
| UNSPSC | 32151603 |
| HTs Code | 8536490075 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP2 |
| Return Indicator | Yes |
| Weight | 0.33 pound |
Characteristics
| Range Of Product | Zelio Analog |
|---|---|
| Product Or Component Type | Voltage/current converter |
| Analogue Input Type | Current 0...1.5 A AC/DC 50/60 Hz Current 0...15 A AC/DC 50/60 Hz Current 0...5 A AC/DC 50/60 Hz |
| Analogue Output Type | Current 0...20 mA <= 500 Ohm by cabling Current 4...20 mA <= 500 Ohm by cabling Voltage 0...10 V >= 100 kOhm by cabling |
| Protection Type | Reverse polarity protection on output Short-circuit protection on output Overvoltage protection on output (+/- 30 V) |
| Abnormal Analogue Output Voltage | -15...0 V no input or input wire broken |
| Abnormal Analogue Output Current | -30…0 mA 0...20 mA no input or input wire broken 4…30 mA 4...20 mA no input or input wire broken |
| Us Rated Supply Voltage | 24 V DC +/- 20 %, isolated |
| Current Consumption | <= 70 mA voltage output <= 90 mA current output |
| Local Signalling | Power ON LED green) |
| Measurement Error | +/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) +/- 5 % of full scale 20 °C |
| Repeat Accuracy | +/- 0.2 % full scale 20 °C +/- 0.6 % full scale 60 °C |
| Temperature Coefficient | 1000 ppm/°C 0...5 A 2000 ppm/°C 0...15 A 500 ppm/°C 0...1.5 A |
| Clamping Connection Capacity | 2 x 1.5 mm² 1 x 2.5 mm² |
| Tightening Torque | 5.31…9.74 lbf.in (0.6…1.1 N.m) |
| Marking | CE |
| Surge Withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 |
| Ui Rated Insulation Voltage | 2 kV |
| Fixing Mode | By screws mounting plate) Clip-on 35 mm symmetrical DIN rail) |
| Safety Reliability Data | B10d = 22108 MTTFd = 23.9 years |
| Product Weight | 0.33 lb(US) (0.15 kg) |
| Standards | IEC 60947-1 IEC 60584-1 |
| Product Certifications | CSA UL GL |
| IP Degree Of Protection | IP20 terminal block) IP50 housing) |
| Fire Resistance | 1562 °F (850 °C) IEC 60695-2-1 1562 °F (850 °C) UL |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Vibration Resistance | 5 gn 10…100 Hz)IEC 60068-2-6 |
| Resist Electrostatic Dischrg | 6 kV in contact)IEC 61000-4-2 level 3 8 kV in air)IEC 61000-4-2 level 3 |
| Resistance To Fast Transients | 1 kV IEC 61000-4-4 on input-output) 2 kV IEC 61000-4-4 on power supply) |
| Disturbance Radiated/Conducted | CISPR 11 CISPR 22 group 1 - class B |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temp For Op | 32…122 °F (0…50 °C) mounting side by side 32…140 °F (0…60 °C) 2 cm spacing |
| Pollution Degree | 2 IEC 60664-1 |
| Category | 22375 - INTERFACE MODULE(ABA,R,S) |
| Discount Schedule | CP2 |
| GTIN | 00785901899501 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
