Part Number | ABE9C1280M |
---|---|
Country of Origin | DE |
UPC | 785901521990 |
UPC11 | 78590152199 |
EAN | 3389110404487 |
Availability | N |
Lead Time | 30 |
UNSPSC | 32151601 |
HTs Code | 8537109170 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | PC12 |
Return Indicator | No |
Weight | 0.22 pound |
Range Of Product | Advantys ABE9 |
---|---|

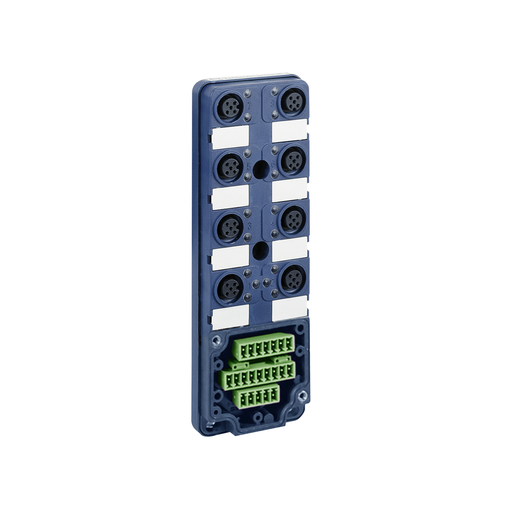

Product Or Component Type | IP67 passive splitter box |
Number Of Channels | 8 |
Electrical Connection | 1 male plug-in connector 8 female connectors M12 5 pins |
Status Led | without |
Number Of Ways | 16 ways |
Ue Rated Operational Voltage | 24 V DC |
Current Per Channel | 4 A |
Insulation Group | Category 3 VDE 0110 |
Operating Position | Any position |
Fixing Mode | M4 screw fixing |
Contact Resistance | 5000 µOhm |
Current Of Common | 16 A 0.00 in² (1 mm²) 12 A 0.00 in² (0.75 mm²) |
Separation Of Commons | Without or with |
Product Weight | 0.22 lb(US) (0.1 kg) |
IP Degree Of Protection | IP67 IEC 529 |
Product Certifications | CULus |
Ambient Air Temp For Op | -4…176 °F (-20…80 °C) |
Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
Vibration Resistance | 0.2 gn 57…150 Hz)IEC 68-2-6, FC tests |
Shock Resistance | 30 gn 11 ms EN 68-2-2 30 gn 11 ms IEC 68-2-2 |
Category | 18125 - MODSOFT LITE SOFTWARE |
Discount Schedule | PC12 |
GTIN | 00785901521990 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | DE |
Green Premium Status | Green Premium product |
REACh Free Of SVHC | Yes |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Toxic Heavy Metal Free | Yes |
Mercury Free | Yes |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Warranty | 18 months |
