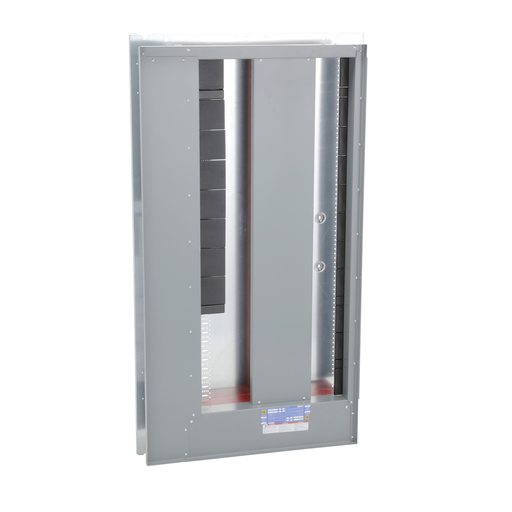

Interior, I-Line PNLBRD, hcr-u, 44×86 in
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCR-U I-Line panelboard interior is a 1200A and has Universal Mains. The dimesnions are 86 in (H), 44 in (W). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | HCR548612U |
|---|---|
| Country of Origin | US |
| UPC | 785901001355 |
| UPC11 | 78590100135 |
| EAN | 0785901001355 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39121112 |
| ECCN | EAR99 |
| HTs Code | 8537109150 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | PE1A |
| Return Indicator | Yes |
| Depth | 8.85 inch |
| Height | 66.03 inch |
| Width | 36.91 inch |
| Weight | 275.00 pound |
Characteristics
| Range | I-Line |
|---|---|
| Main Type | Universal Mains |
| Width | 36.91 in (937.51 mm) |
| Height | 66.03 in (1677.16 mm) |
| Depth | 8.85 in (224.79 mm) |
| Product Destination | Panelboard interior HCR-U 44 in (1117.60 mm) 86 in (2184.40 mm) |
| Rated Current | 1200 A |
| Mounting Space | 108 in (2743.20 mm) |
| Product Weight | 275.00 lb(US) (124.74 kg) |
| Category | 00016 - I-LINE PB RTA |
| Discount Schedule | PE1A |
| GTIN | 00785901001355 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | US |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
