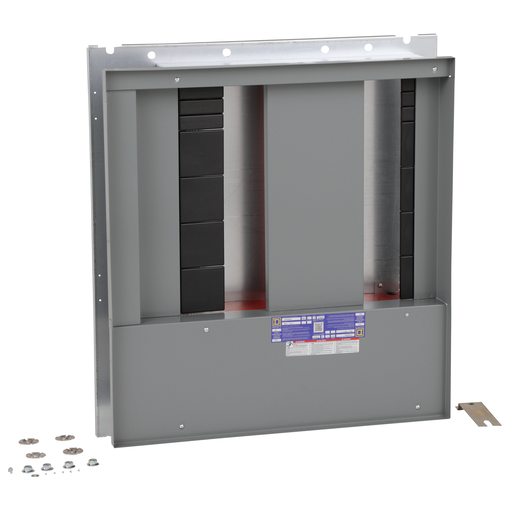

Interior, I-Line PNLBRD, hcp, 1200 A, main lugs, 42×59 in
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCP I-Line panelboard interior is a 1200A and has main lugs. The dimesnions are 59 in (H),42 in (W). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | HCP235912N |
|---|---|
| Country of Origin | US |
| UPC | 785901430599 |
| UPC11 | 78590143059 |
| EAN | 0785901430599 |
| Availability | S |
| Lead Time | 10 |
| UNSPSC | 39121112 |
| ECCN | EAR99 |
| HTs Code | 8537109150 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | PE1A |
| Return Indicator | Yes |
| Height | 39 inch |
| Width | 35.47 inch |
| Weight | 175.00 pound |
Characteristics
| Range | I-Line |
|---|---|
| Main Type | Main lugs |
| Width | 35.47 in (900.94 mm) |
| Height | 39 in (990.60 mm) |
| Product Destination | Panelboard interior HCP 42 in (1066.80 mm) 59 in (1498.60 mm) |
| Rated Current | 1200 A |
| Mounting Space | 45 in (1143.00 mm) |
| Product Weight | 175.00 lb(US) (79.38 kg) |
| Category | 00016 - I-LINE PB RTA |
| Discount Schedule | PE1A |
| GTIN | 00785901430599 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | US |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
