Inductive sensor XS6 M8 – L62mm – stainless – Sn2.5mm – 12..48VDC – M12

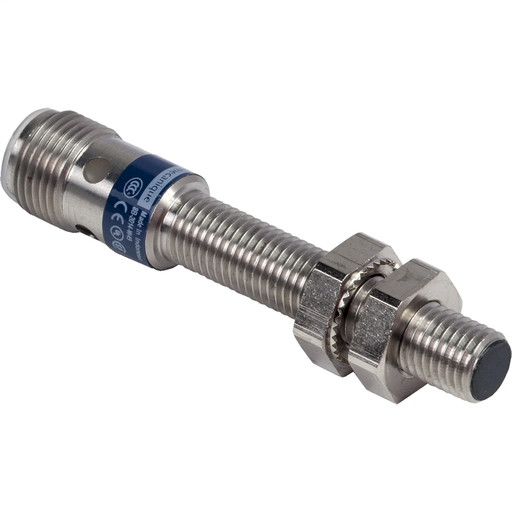

This XS cylindrical (M8 thread) inductive proximity sensor has a PPS sensing face and a stainless steel grade 303 case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Non-magnetic 303 stainless steel provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CSA, UL certified.
Brand: Telemecanique
Add to Quote CatalogueSpecifications
| Part Number | XS608B1PBM12 |
|---|---|
| Country of Origin | ID |
| UPC | 785901495659 |
| UPC11 | 78590149565 |
| EAN | 3389110145687 |
| Availability | N |
| Lead Time | 43 |
| UNSPSC | 39122230 |
| HTs Code | 8536507000 |
| Prop 65 | This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | DS2 |
| Return Indicator | Yes |
| Weight | 0.03 pound |
Characteristics
| Range Of Product | OsiSense XS |
|---|---|
| Series Name | General purpose |
| Sensor Type | Inductive proximity sensor |
| Sensor Name | XS6 |
| Sensor Design | Cylindrical M8 |
| Size | 62 mm |
| Body Type | Fixed |
| Flush Mountability | Flush mountable |
| Material | Stainless steel |
| Type Of Output Signal | Discrete |
| Wiring Techniquees | 3-wire |
| Sn Nominal Sensing Distance | 0.10 in (2.5 mm) |
| Discrete Output Function | 1 NC |
| Output Circuit Type | DC |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M12, 4 pins |
| [Us] Rated Supply Voltage | 12...48 V DC reverse polarity protection |
| Switching Capacity In Ma | <= 200 mA DC overload and short-circuit protection |
| IP Degree Of Protection | IP67 IEC 60529 |
| Thread Type | M8 x 1 |
| Detection Face | Frontal |
| Front Material | PPS |
| Enclosure Material | Stainless steel 303 |
| Sensing Range | > 0...0.1 in (> 0...2.5 mm) |
| Operating Zone | 0.00…0.08 in (0…2 mm) |
| Differential Travel | 1...15% of Sr |
| Status Led | Output state 1 LED yellow) |
| Supply Voltage Limits | 10…58 V DC |
| Switching Frequency | <= 2500 Hz |
| Voltage Drop | <2 V closed) |
| Current Consumption | <= 10 mA no-load |
| Delay First Up | 10 ms |
| Delay Response | 0.2 ms |
| Delay Recovery | 0.2 ms |
| Marking | CE |
| Threaded Length | 1.57 in (40 mm) |
| Length | 2.44 in (62 mm) |
| Product Weight | 0.03 lb(US) (0.015 kg) |
| Product Certifications | UL CSA |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Vibration Resistance | 25 gn +/- 2 mm 10…55 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Category | 22486 - SENSORS, PROXIMITY |
| Discount Schedule | DS2 |
| GTIN | 00785901495659 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
