Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Add to Quote CataloguePart Number | XVBC9B |
---|---|
Country of Origin | ID |
UPC | 785901845966 |
UPC11 | 78590184596 |
EAN | 3389110845969 |
Availability | S |
Lead Time | 33 |
UNSPSC | 32151501 |
ECCN | EAR99 |
HTs Code | 8531809026 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | XV |
Return Indicator | Yes |
Weight | 0.37 pound |
Range Of Product | Harmony XVB Universal |
---|---|
Product Or Component Type | Indicator bank |

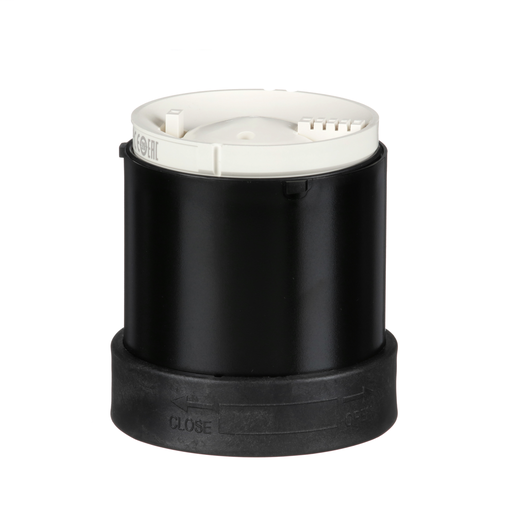

Beacon/Indicator Bk Unit Type | Audible unit |
Mounting Diameter | 2.76 in (70 mm) |
Component Name | XVBC |
Noise Level | 70…90 dB 1 m |
Us Rated Supply Voltage | 12...48 V AC/DC |
Signalling Type | Continuous or intermittent buzzer |
Assembly Style | Customer assembly, up to 5 units |
Connections - Terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
Ui Rated Insulation Voltage | 250 V IEC 60947-1 |
Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
Current Consumption | < 15 mA |
Uimp Rated Imp Wstd Voltage | 4 kV IEC 60947-1 |
Fundamental Frequency | 2.8 kHz |
Cad Overall Width | 2.76 in (70 mm) |
Cad Overall Height | 2.48 in (63 mm) |
Cad Overall Depth | 2.76 in (70 mm) |
Product Weight | 0.37 lb(US) (0.17 kg) |
Product Certifications | CSA C22-2 No 14 GOST UL 508 CCC |
Standards | EN/IEC 60947-5-1 |
Protective Treatment | TC |
Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temp For Op | -13…122 °F (-25…50 °C) |
Electrical Shock Protect Class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
IP Degree Of Protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
Nema Degree Of Protection | NEMA 4X UL 508 indoor) |
Category | 22611 - XVB-STACKLIGHTS |
Discount Schedule | XV |
GTIN | 00785901845966 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | ID |
Green Premium Status | Green Premium product |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Mercury Free | Yes |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Warranty | 18 months |
