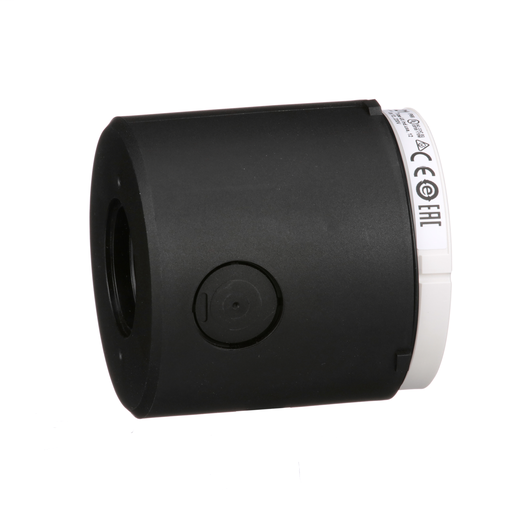

Indicating Bank, 70mm, base unit and cap, direct or tube mounting, bottom or side cable entry
Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Add to Quote CatalogueSpecifications
| Part Number | XVBC21 |
|---|---|
| Country of Origin | ID |
| UPC | 785901845027 |
| UPC11 | 78590184502 |
| EAN | 3389110845020 |
| Availability | S |
| Lead Time | 60 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531909001 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Weight | 0.42 pound |
Characteristics
| Range Of Product | Harmony XVB Universal |
|---|---|
| Product Or Component Type | Base unit with cover |
| Component Name | XVBC |
| Material | Glass reinforced polyamide base unit Polycarbonate cover unit |
| Fixing Mode | Direct or tube fixing |
| Mounting Diameter | 2.76 in (70 mm) |
| Product Destination | Banks without flash discharge tube unit |
| Electrical Connection | 1 connector standard input |
| Cable Entry | Bottom or side entry |
| Assembly Style | Customer assembly, up to 5 units |
| Terminals Description ISO n°1 | (GND)GROUND (COM-1)PW (COM-4)PW (COM-3)PW (COM-5)PW (COM-2)PW |
| Product Weight | 0.42 lb(US) (0.19 kg) |
| Product Certifications | CCC UL 508 GOST CSA C22-2 No 14 |
| Standards | EN/IEC 60947-5-1 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Nema Degree Of Protection | NEMA 4X UL 508 indoor) |
| Category | 22611 - XVB-STACKLIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901845027 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
Documents
- Declaration Of Conformity (DC-NVE6417000)
- Instruction Sheet (155870901A55)
- CAD wmf (XVBC21_CAD2D-MECHANICAL_BOTTOM)
- CAD wmf (XVBC21_CAD2D-MECHANICAL_ISO)
- CAD dwg (XVBC21-A_CAD2D-MECHANICAL_SIDE)
- CAD dxf (XVBC21-A_CAD2D-MECHANICAL_TOP)
- CAD dwf (XVBC21-B_CAD2D-MECHANICAL_SIDE)
- CAD dwf (XVBC21_CAD2D-MECHANICAL_BOTTOM)
- CAD wmf (XVBC21-B_CAD2D-MECHANICAL_TOP)
