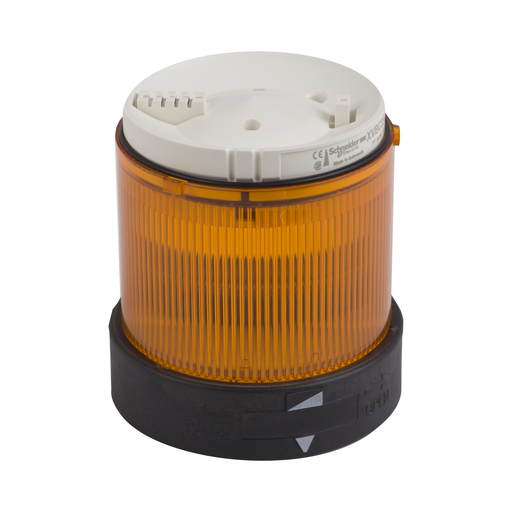

Illuminated unit for modular tower lights, plastic, orange, Ø70, steady, bulb or LED not included, 250 V
This Harmony XVB orange illuminated unit is supplied with up to 250V AC/DC bulb, bulb order separately, steady light. This orange indicating bank lens is designed as an illuminated unit to be connected with base and create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Add to Quote CatalogueSpecifications
| Part Number | XVBC35 |
|---|---|
| Country of Origin | ID |
| UPC | 785901341925 |
| UPC11 | 78590134192 |
| EAN | 3389110845082 |
| Availability | S |
| Lead Time | 48 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531909001 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony XVB Universal |
|---|---|
| Product Or Component Type | Indicator bank |
| Beacon/Indicator Bk Unit Type | Illuminated unit |
| Signalling Type | Steady |
| Mounting Diameter | 2.76 in (70 mm) |
| Component Name | XVBC |
| Material | Polycarbonate |
| Light Source | Bulb not included, orange |
| Bulb Type | Incandescent BA 15d Protected LED |
| Us Rated Supply Voltage | <= 250 V |
| Assembly Style | Customer assembly, up to 5 units |
| Power Dissipation In W | 7 W |
| Connections - Terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Ui Rated Insulation Voltage | 250 V IEC 60947-1 |
| Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
| Uimp Rated Imp Wstd Voltage | 4 kV IEC 60947-1 |
| Cad Overall Width | 2.76 in (70 mm) |
| Cad Overall Height | 2.48 in (63 mm) |
| Cad Overall Depth | 2.76 in (70 mm) |
| Pollution Degree | 2 |
| Product Certifications | CSA C22-2 No 14 UL 508 CCC GOST |
| Standards | EN/IEC 60947-5-1 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…122 °F (-25…50 °C) LED -13…158 °F (-25…70 °C) incandescent |
| Electrical Shock Protect Class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
| IP Degree Of Protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
| Nema Degree Of Protection | NEMA 4X UL 508 indoor) |
| Category | 22611 - XVB-STACKLIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901341925 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
