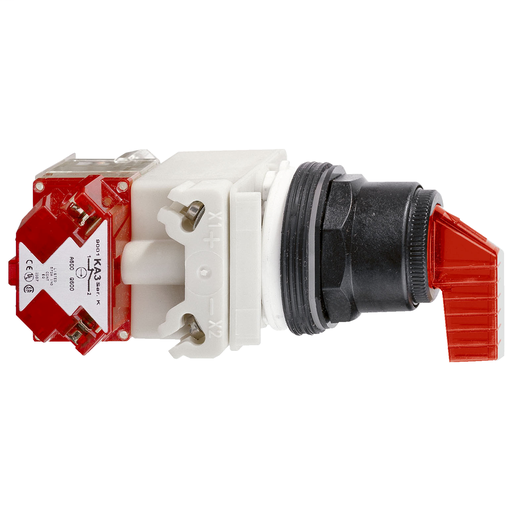

Illuminated selector switch Ø 30 – red – 3 positions – spring return to centre
This Harmony 9001SK, modular illuminated red selector switch with long handle has 3 positions, operates with spring return from left and right to center position. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED and is supplied with a C cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9001SK53J35LRFR |
|---|---|
| Country of Origin | MX |
| UPC | 389118037939 |
| UPC11 | 38911803793 |
| EAN | 3389118037939 |
| Availability | N |
| Lead Time | 3 |
| HTs Code | 8538908180 |
| Discount Schedule | CS1 |
| Return Indicator | No |
| Weight | 0.42 pound |
Characteristics
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | Illuminated selector switch |
| Device Short Name | 9001SK |
| Type Of Operator | To centre spring return |
| Operator Profile | Red long handle |
| Bezel Material | Plastic |
| Mounting Diameter | 1.18 in (30 mm) |
| Product Weight | 0.42 lb(US) (0.19 kg) |
| Shape Of Signaling Unit Head | Octagonal |
| Operator Pos Information | 3 positions |
| Contacts Type And Composition | Without contact block |
| Mechanical Durability | 500000 cycles |
| Light Block Supply | Direct |
| Light Source | LED |
| Bulb Base | BA 9s |
| Light Block Colour | Red |
| Product Compatibility | 9001KA1 side 1 or 2 |
| [Us] Rated Supply Voltage | 24...28 V AC/DC |
| Mounting Location | Side 1 or 2 |
| Device Presentation | Basic element |
| Compatibility Code | 9001SK |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class | Class II IEC 61140 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X |
| Standards | UL 508 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C 4520 JIS C 852 |
| Product Certifications | UL 508 NEMA |
| Vibration Resistance | 7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 03389118037939 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Warranty | 18 months |
