| Range Of Product |
Harmony 9001K |
| Product Or Component Type |

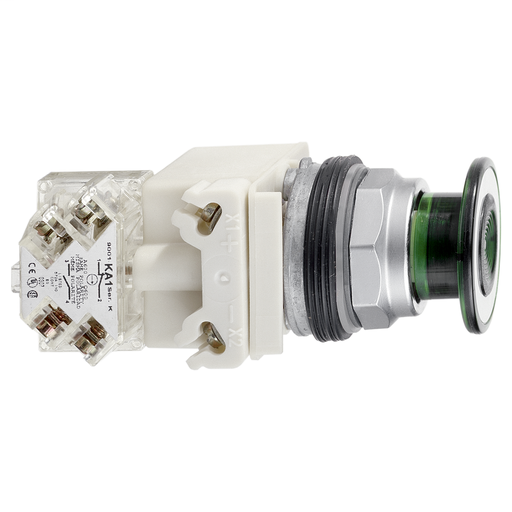

Illuminated mushroom head push-button |
| Device Short Name |
9001K |
| Type Of Operator |
stay put |
| Operator Profile |
Green mushroom Ø 41 mm, unmarked |
| Light Block Supply |
Direct |
| Bezel Material |
Chromium plated metal |
| Mounting Diameter |
1.18 in (30 mm) |
| Product Weight |
0.41 lb(US) (0.186 kg) |
| Operating Position |
Any position |
| Shape Of Signaling Unit Head |
Round |
| Operator Pos Information |
2 positions |
| Contacts Type And Composition |
Without contact block |
| Mechanical Durability |
5000000 cycles |
| Light Source |
Incandescent |
| Light Source |
incandescent |
| Bulb Base |
BA 9s |
| Us Rated Supply Voltage |
48 V AC/DC |
| [Us] Rated Supply Voltage |
48 V AC/DC |
| Compatibility Code |
9001K |
| Protective Treatment |
TC |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class |
Class II IEC 60536 |
| Overvoltage Category |
Class II IEC 60536 |
| IP Degree Of Protection |
IP66 IEC 60529 |
| Nema Degree Of Protection |
NEMA 1
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4 |
| Standards |
CSA C22.2 No 14
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
EN/IEC 60947-1
EN/IEC 60947-5-1
UL 508 |
| Product Certifications |
NEMA
UL 508 |
| Vibration Resistance |
7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
50 gn IEC 60068-2-27 |
| Category |
21429 - 9001 SK,SKY |
| Discount Schedule |
CS1 |
| GTIN |
03389119001250 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
MX |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
