| Range Of Product |
Harmony iPC |
| Product Or Component Type |

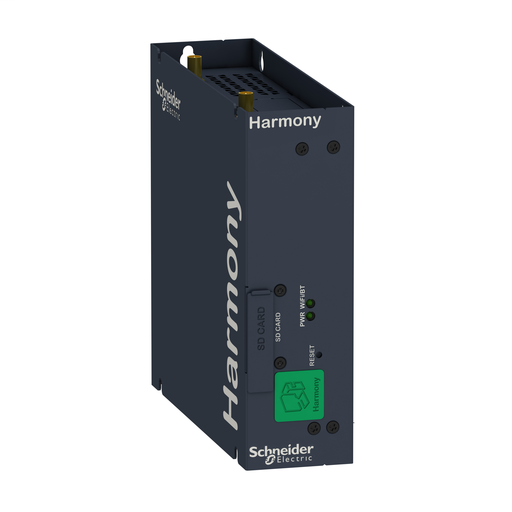

IIoT Edge Box Core |
| Device Short Name |
IIoT Edge Box Core |
| Free Slots |
1 SD card SD 3.0, max raw transfer rate 104 MBps Supports SD,SDHC,SDXC (Standard 32 mm x 24 mm) |
| Operating System |
Linux Yocto Linux Yocto project Krogoth 2.1)
Linux Yocto BitBake branch 1.30.0)
Linux Yocto Linux Kernel 4.4.38) |
| Software Package |
Node-RED and system nodes default IIoT Wiring |
| Range Compatibility |
HMIYMIN4GUS1 Interface Mini PCIe 4G US for iPC
HMIYMIN4GEU1 Interface Mini PCIe 4G EU for iPC
HMIYMIN8AI1 Interface Mini PCIe 8x Analog Input 0-10V
HMIYBIN2AIM21 Interface M.2 2x Analog Input 0-10V/4-20mA |
| Accessory / Separate Part Dest |
Celullar 4G and analog Inputs |
| Mounting Location |
Book mounting
Flat mounting
Wall mounting |
| Processor Name |
ARM Cortex-A53 Quad core Qualcomm Snapdragon 410 |
| Data Storage Equipment |
8 GB eMMC (soldered) |
| Memory Description |
1 GB RAM LPDDR3 internal not expandable) |
| Number Of Slots |
1 mini PCI Express full-size
1 M.2 |
| Display Resolution |
1920 x 1080 pixels at 60 Hz |
| Watchdog Timer |
1…255 ms |
| Type Of Cooling |
Fanless |
| Electrical Connection |
Screw connector pin, 1 way ground bottom
Connector SMA top |
| Integrated Connection Type |
HDMI For configuration only 1 bottom
Ethernet 2 RJ45 SMSC LAN7500 10/100/1000 Mbps bottom IEEE 1588 not supported
COM1 serial link battery backup 1 male SUB-D 9 RS232/422/485 non-isolated
USB 2.0 port 2.0 USB type A 480 Mbit/s bottom
TPM connector Ver 2.0 cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed motherboard |
| Communication Network Type |
Wi-Fi IEEE 802.11 b/g/n
Bluetooth 4.1 |
| Cyber Secured Boot |
Secure password boot |
| Connector Type |
1.0 x GPIO Pin bottom |
| [Us] Rated Supply Voltage |
24 V DC power supply
100...240 V AC power supply |
| Supply Voltage Limits |
12…24 V |
| Inrush Current |
0.43 A |
| Power Consumption In W |
16 W |
| Control Type |
Resettable |
| Depth |
1.81 in (46 mm) |
| Height |
5.91 in (150 mm) |
| Width |
6.18 in (157 mm) |
| Product Weight |
2.20 lb(US) (1 kg) |
| Nb Of Slt Available F Exp |
1.0 mini PCIe
1.0 M.2 (not for storage) |
| Standards |
Class A group 1 EN 55011
EN 61000-6-4
EN 61131-2
FCC part 15
UL 60950 |
| Product Certifications |
CE
CULus
UL 60950 for IT equipments
CCC
RCM
EAC
RED
FCC RF
IC
SRRC
TELEC
FAC
ANATEL |
| Quality Labels |
CE |
| Directives |
2004/108/EC - electromagnetic compatibility
2006/95/EC - low voltage directive |
| IP Degree Of Protection |
IP40 IEC 60529 |
| Electromagnetic Compatibility |
Immunity to high frequency interference IEC 61000-4
Disturbing field emissionclass A EN 55011
Conducted and radiated emissionsclass A EN 55022 |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) IEC 60068-2-2
-4…140 °F (-20…60 °C) IEC 60068-2-14 |
| Relative Humidity |
10…95 % non-condensing EN/IEC 60068-2-30 |
| Ambient Air Temp For Op |
32…122 °F (0…50 °C) by default) EN/IEC 60068-2-2
32…122 °F (0…50 °C) flat mounting
32…113 °F (0…45 °C)mini PCIe
32…113 °F (0…45 °C) flat mountingmini PCIe |
| Operating Altitude |
6561.68 ft (2000 m) EN/IEC 60664-1 |
| Vibration Resistance |
2 gn 5…500 Hz)eMMC |
| Category |
22577 - EDGE BOX IPC |
| Discount Schedule |
MC2 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
US |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
