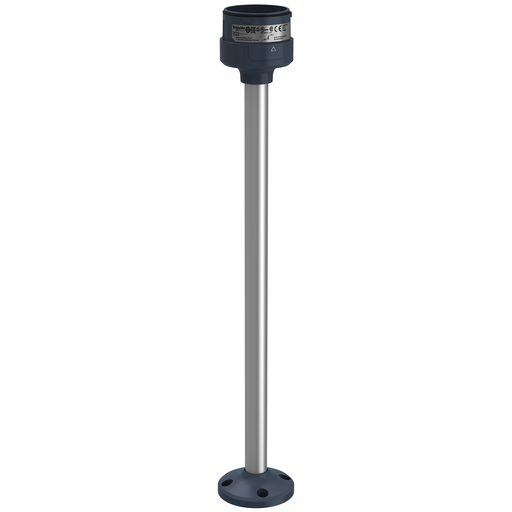

This Harmony XVU fixing plate is work with DC and AC base units. It contains base unit, support pole, and vertical fixing plate. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 400mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.
Add to Quote CataloguePart Number | XVUZ400 |
---|---|
Country of Origin | ID |
UPC | 785901786153 |
UPC11 | 78590178615 |
EAN | 3606485433165 |
Availability | N |
Lead Time | 55 |
ECCN | EAR99 |
HTs Code | 3926909985 |
Discount Schedule | XV |
Return Indicator | Yes |
Weight | 0.52 pound |
Range Of Product | Harmony XVU |
---|---|
Product Or Component Type | Modular tower light |
Accessory / Separate Part Type | Fixing plate |
Accessory / Separate Part Cate | Mounting and fixing accessory |
Component Name | XVU |
Mounting Diameter | 2.36 in (60 mm) |
Pole Heigth | 15.75 in (400 mm) |
Mounting Support | Plate with pole |
Product Compatibility | Top AC/DC body |
Material | PBT (polybutylene terephthalate) V-0 UL 94 ABS (acrylonitrile butadiene-styrene) PC (polycarbonate) Aluminium |
Housing Colour | Black |
Connections - Terminals | Push-in |
[Us] Rated Supply Voltage | 24 V AC/DC 110...240 V AC |
Length | 16.42 in (417 mm) |
Product Weight | 0.52 lb(US) (0.236 kg) |
Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temp For Op | -13…122 °F (-25…50 °C) |
IP Degree Of Protection | IP65 |
Product Certifications | UL CSA CE |
Category | 22618 - XVU TOWER LIGHTS |
Discount Schedule | XV |
GTIN | 00785901786153 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | ID |
EU RoHs Directive | Under investigation |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
