Fixing plate with 100 mm aluminium pole for modular tower lights, black, Ø60
XVUZ02

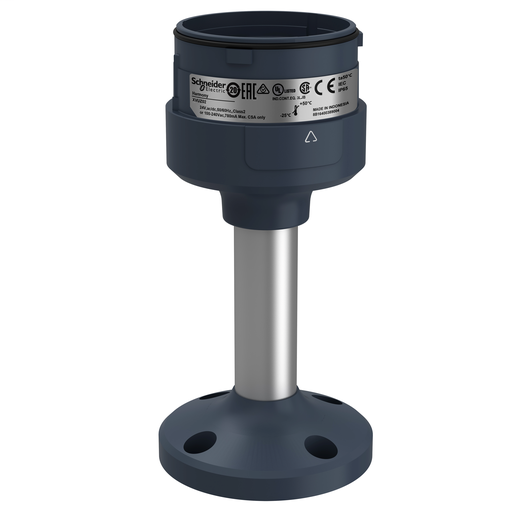

Fixing plate with 100 mm aluminium pole for modular tower lights, black, Ø60

This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It has a mounting diameter of 60mm and contains base unit, support pole, and horizontal fixing plate. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a mounting diameter of 60mm with a pole height of 100mm. It complies with CSA, UL, and CE standards and it has IP65 protection index. It makes it ideal for operation in harsh environments.

Add to Quote Catalogue
Specifications
Part Number XVUZ02
Country of Origin ID
UPC 785901776888
UPC11 78590177688
EAN 3606480556012
Availability N
Lead Time 60
UNSPSC 32151501
ECCN EAR99
HTs Code 8531909001
Prop 65 This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
RoHS Compliant Yes
Discount Schedule XV
Return Indicator Yes
Weight 0.29 pound
Characteristics
Range Of Product Harmony XVU
Product Or Component Type Modular tower light
Accessory / Separate Part Type Fixing plate
Accessory / Separate Part Cate Mounting and fixing accessory
Component Name XVU
Mounting Diameter 2.36 in (60 mm)
Pole Heigth 3.94 in (100 mm)
Mounting Support Plate with pole
Product Compatibility Top AC body Top DC body Top swivel mounting support
Material PBT (polybutylene terephthalate) V-0 UL 94 ABS (acrylonitrile butadiene-styrene) PC (polycarbonate) Aluminium
Housing Colour Black
Connections - Terminals Push-in
[Us] Rated Supply Voltage 24 V AC/DC 110...240 V AC
Length 4.61 in (117 mm)
Product Weight 0.29 lb(US) (0.132 kg)
Ambient Air Temp For Storage -40…158 °F (-40…70 °C)
Ambient Air Temp For Op -13…122 °F (-25…50 °C)
IP Degree Of Protection IP65
Product Certifications CSA UL CE
Category 22618 - XVU TOWER LIGHTS
Discount Schedule XV
GTIN 00785901776888
Nbr. Of Units In Pkg. 1
Country Of Origin ID
Green Premium Status Green Premium product
EU RoHs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free Yes
