XVUZ400T

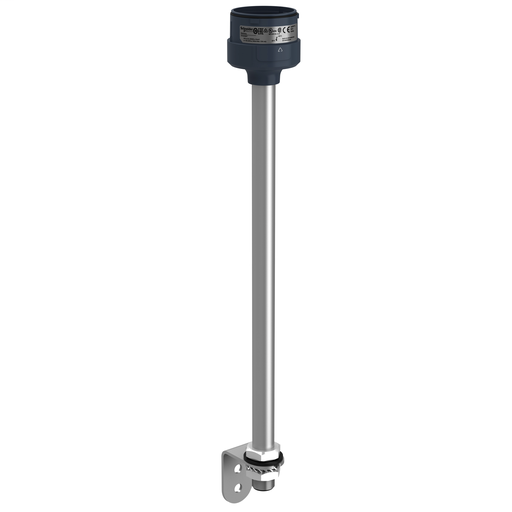

Fixing metal bracket with 400 mm aluminium pole for modular tower lights, black, Ø60
This Harmony XVU fixing plate is work with DC and AC base units. This black fixing plate with support pole is designed as a mounting and fixing accessory for modular tower light. It allows fast and easy replacement of your signaling units via simple push-in terminals. It has a diameter of 60mm with a pole height of 400mm. It complies with CSA, UL, and CE standards and it has IP32 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists.
Add to Quote CatalogueSpecifications
| Part Number | XVUZ400T |
|---|---|
| Country of Origin | ID |
| UPC | 785901010661 |
| UPC11 | 78590101066 |
| EAN | 3606480887147 |
| Availability | N |
| Lead Time | 15 |
| ECCN | EAR99 |
| HTs Code | 7616995190 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | No |
| Weight | 0.71 pound |
Characteristics
| Range Of Product | Harmony XVU |
|---|---|
| Product Or Component Type | Modular tower light |
| Accessory / Separate Part Type | Fixing plate |
| Accessory / Separate Part Cate | Mounting and fixing accessory |
| Component Name | XVU |
| Mounting Diameter | 2.36 in (60 mm) |
| Pole Heigth | 15.75 in (400 mm) |
| Mounting Support | Metal bracket with pole |
| Product Compatibility | Top AC/DC body |
| Material | PBT (polybutylene terephthalate) V-0 UL 94 ABS (acrylonitrile butadiene-styrene) PC (polycarbonate) Aluminium |
| Housing Colour | Black |
| Connections - Terminals | Push-in |
| [Us] Rated Supply Voltage | 24 V AC/DC 110...240 V AC |
| Length | 17.72 in (450 mm) |
| Product Weight | 0.71 lb(US) (0.32 kg) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…122 °F (-25…50 °C) |
| IP Degree Of Protection | IP32 |
| Product Certifications | UL CSA CE |
| Category | 22618 - XVU TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901010661 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
