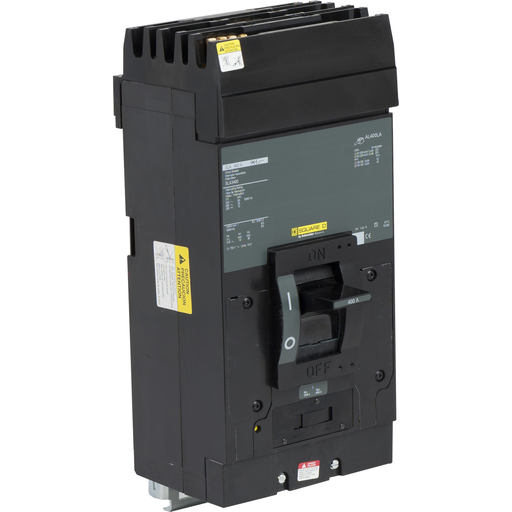

SLA3400
FA/LA MOLDED CASE CIRCUIT BREAKER, 415/240V, 400A, 3P
Specifications
| Part Number | SLA3400 |
|---|---|
| Country of Origin | MX |
| UPC | 785901572152 |
| UPC11 | 78590157215 |
| Availability | S |
| UNSPSC | 39121601 |
| HTs Code | 8536200020 |
| Discount Schedule | DE2 |
| Return Indicator | Yes |
| Depth | 19.9 inch |
| Height | 12.6 inch |
| Width | 12.5 inch |
Characteristics
| Product Or Component Type | Circuit breaker |
|---|---|
| Range Of Product | Square D |
| Trip Unit Type | Thermal-magnetic |
| Rating Code | A |
| In Rated Current | 400 A |
| Number Of Poles | 3P |
| Interrupt Rating | 42 kA 120 V AC 42 kA 240 V AC 30 kA 480Y/277 V AC 30 kA 480 V AC 22 kA 600 V AC 10 kA 125 V DC 10 kA 250 V DC |
| Ue Rated Operational Voltage | 600 V AC 125 V DC 250 V DC |
| Mounting Mode | I-Line |
| Electrical Connection | Lugs load I-Line connection line |
| Wire Gauge | AWG 1...600 kcmil aluminium/copper)1 AWG 1...250 kcmil aluminium/copper)2 |
| Terminal Type | AL400LA |
| Magnetic Hold Current | 2000 A |
| Magnetic Tripping Current | 4000 A |
| Height | 12.6 in (320.04 mm) |
| Width | 12.5 in (317.50 mm) |
| Depth | 19.9 in (505.46 mm) |
| Tightening Torque | 115.06 lbf.in (13 N.m) 0.07…0.47 in² (42…304 mm²) AWG 1...600 kcmil) 115.06 lbf.in (13 N.m) 0.07…0.20 in² (42…127 mm²) AWG 1...250 kcmil) |
| Product Certifications | IEC CE |
| Ambient Air Temp For Op | 104 °F (40 °C) |
| Category | 00923 - IEC I-LINE MCCB'S |
| Discount Schedule | DE2 |
| GTIN | 00785901572152 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Not applicable, out of EU RoHS legal scope |
| Warranty | 18 months |
