| Range Of Product |
Modicon Premium Automation platform |
| Product Or Component Type |

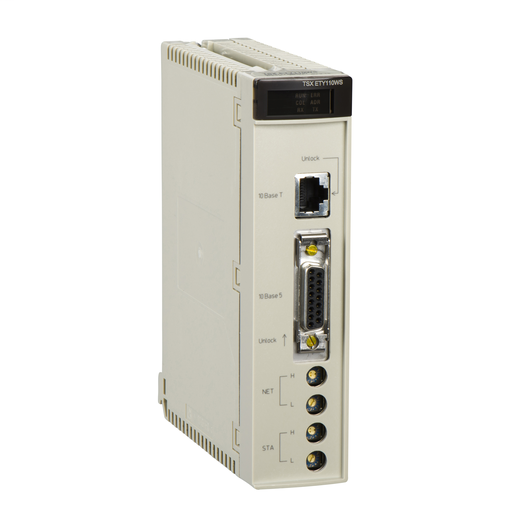

Ethernet TCP/IP module |
| Physical Interface |
AUI - 100BASE-5 1 AUI cable
RJ45 - 10BASE-T 1 twisted pair |
| Transmission Rate |
10 Mbit/s |
| Communication Service |
Modbus TCP messaging
Optional TCP open
SNMP agent
Uni-TE messaging
Common words, Ethway/X-Way
Application to application, Ethway/X-Way |
| Supply |
Via the power supply of the rack |
| Local Signalling |
Collision detection (COL) 1 LED
Ethernet network status (RUN) 1 LED
Ethernet port fault (ERR) 1 LED
Transmission/reception activity (TX/TR) 1 LED |
| Communication Port Protocol |
Ethway/X-Way
Modbus TCP
Uni-Telway |
| Maximum Number Of Connections |
64 |
| Web Server |
Transparent ready class C10 |
| Web Feature |
Data Editor (via PC terminal)
Rack viewer
FactoryCast configurable |
| Memory Description |
User web page size 1.4 MB |
| Marking |
CE |
| Product Compatibility |
PL7 Pro |
| Current Consumption |
1200 mA 5 V DC with remote power supply (AUI)
800 mA 5 V DC without remote power supply (RJ45) |
| Module Format |
Standard |
| Product Weight |
0.82 lb(US) (0.37 kg) |
| Standards |
FM Class 1 Division 2 group D
FM Class 1 Division 2 group C
EN 61131-2
FM Class 1 Division 2 group B
FM Class 1 Division 2 group A |
| Product Certifications |
UL 508
CSA 1010-1 |
| IP Degree Of Protection |
IP20 |
| Ambient Air Temp For Op |
32…140 °F (0…60 °C) |
| Relative Humidity |
10…95 % 140 °F (60 °C) without condensation |
| Category |
22558 - TSX PREMIUM, ATRIUM & PL7 PRO |
| Discount Schedule |
PC22 |
| GTIN |
00785901647515 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Warranty |
18 months |
