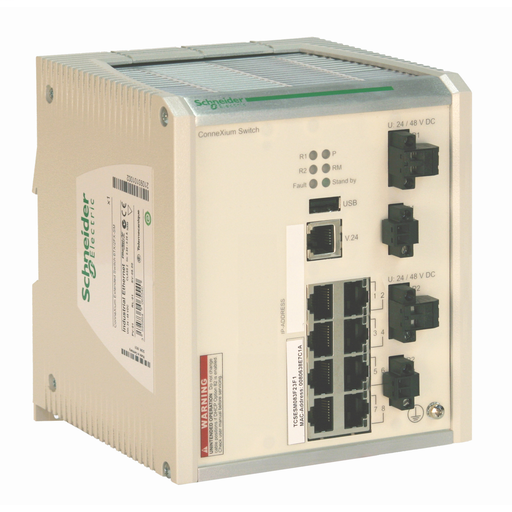

Ethernet TCP/IP extended managed switch – ConneXium – 8 ports for copper
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP extended managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 12V to 48V, a power consumption of 10W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with two 2-way removable connectors (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, VLAN, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP30 rated product. Its dimensions are 120mm (width) x 115mm (depth) x 137mm (height) and weighs 1kg. This product is certified by CE, LR, BR, GL and C-Tick. It meets UL 508, EN/IEC 61131-2, CSA C22.2 No 214, UL 1604 Class 1 Division 2, CSA C22.2 No 213 Class I Division 2 and IEC 61850-3 standards. It supports 35mm symmetrical DIN rail mount.
Add to Quote CatalogueSpecifications
| Part Number | TCSESM083F23F1 |
|---|---|
| Country of Origin | DE |
| UPC | 785901917144 |
| UPC11 | 78590191714 |
| EAN | 3595864065526 |
| Availability | N |
| Lead Time | 33 |
| UNSPSC | 32151701 |
| ECCN | EAR99 |
| HTs Code | 8517620090 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | PC41 |
| Return Indicator | Yes |
| Depth | 4.53 inch |
| Height | 5.39 inch |
| Width | 4.72 inch |
| Weight | 2.20 pound |
Characteristics
| Range Of Product | ConneXium |
|---|---|
| Product Or Component Type | Ethernet TCP/IP managed switch |
| Concept | Transparent Ready |
| Communication Port Protocol | Ethernet TCP/IP SSH HTTP HTTPS SNMP MRP (Media Redundancy Protocol) RSTP SFTP SCP LLDP |
| Port Ethernet | 10BASE-T/100BASE-TX - 8 copper cable |
| Max Num Of Swtchs In Cascade | Unlimited |
| Cybersecurity | Port hardening Role-based access control |
| Integrated Connection Type | Shielded RJ45 copper cable |
| Transmission Support Medium | Twisted shielded pairs cable CAT 5E copper cable |
| Cable Distance Between Devices | 328.08 ft (100 m) copper cable |
| Ethernet Service | SMTP V3 Configuration via web server Multicast filtering Data stream control IGMP Snooping Secure port VLAN SNMP-Traps and SYSLOG Priority port |
| Communication Service | Telnet TFTP Address conflict detection Port monitoring Port mirroring |
| Diagnostics Run Time | Signal contact Self test |
| Max Num Of Switches In A Ring | 50 |
| Redundancy | Ring coupling Redundant power supplies Redundant single ring HiPER ring Dual RSTP |
| Us Rated Supply Voltage | 12...48 V |
| Supply Voltage Limits | 10…60 V DC SELV |
| Power Consumption In W | 10 W |
| Electrical Connection | 2 removable connectors 2 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Marking | CE |
| Local Signalling | P1 P2 power supplies 2 LEDs Fault 1 LED Ring manager 1 LED Stand-by 1 LED Copper port activity 1 LED per channel Copper port status 1 LED per channel |
| Alarm Output | 2 voltfree contact 1 A |
| Alarm Function | Power supply fault Data link status High temperature |
| Ethernet Cabling System | TF switches |
| Mtbf Reliability | 541481.0 H |
| Width | 4.72 in (120 mm) |
| Height | 5.39 in (137 mm) |
| Depth | 4.53 in (115 mm) |
| Product Weight | 2.20 lb(US) (1 kg) |
| Ambient Air Temp For Op | 32…140 °F (0…60 °C) |
| Relative Humidity | 0…95 % without condensation |
| IP Degree Of Protection | IP30 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
| Standards | UL 508 EN/IEC 61131-2 CSA C22.2 No 214 UL 1604 Class 1 Division 2 CSA C22.2 No 213 Class I Division 2 IEC 61850-3 |
| Product Certifications | GL LR C-tick BV |
| Category | 18225 - PLC NTWRK HRDWR & PROWORX SOFTWARE |
| Discount Schedule | PC41 |
| GTIN | 00785901917144 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | DE |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
