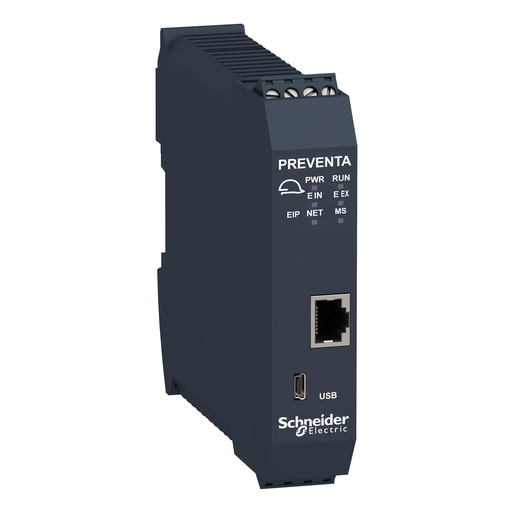

XPSMCMCO0000EI
Ethernet/IP diagnostic expansion module with screw term
This XPSMCM standard (“non-safe”) communication module has one 1 Ethernet IP connection with a RJ45 connector. It monitors remotely your safety system with the commonly used Ethernet/IP protocol, without additional gateways.
Add to Quote CatalogueSpecifications
| Part Number | XPSMCMCO0000EI |
|---|---|
| Country of Origin | IT |
| UPC | 785901812463 |
| UPC11 | 78590181246 |
| EAN | 3606480748400 |
| Availability | N |
| Lead Time | 33 |
| ECCN | EAR99 |
| HTs Code | 8517620090 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | SAF2 |
| Return Indicator | Yes |
| Depth | 4.51 inch |
| Height | 3.90 inch |
| Width | 0.89 inch |
| Weight | 0.66 pound |
Characteristics
| Range Of Product | Preventa Safety automation |
|---|---|
| Product Or Component Type | Non-safe communication module |
| Device Short Name | XPSMCM |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Power Dissipation In W | 3 W |
| Quality Labels | CE |
| Range Compatibility | Preventa XPSMCM |
| Connector Type | RJ45 |
| Number Of Port | 2 |
| Method Of Access | Slave |
| Transmission Rate | 10/100 Mbit/s |
| Communication Port Protocol | Ethernet TCP/IP |
| Current Consumption | 0.125 mA |
| Cable Distance Between Devices | 328.08 ft (100 m) |
| Local Signalling | LED green ON power ON LED green RUN operating LED red E IN internal error LED red E EX external error LED green/red NET connection state LED green/red STS communication status |
| Number Of Terminals | 2 |
| Connections - Terminals | 2 captive screw clamp terminals, removable terminal block 1 captive screw clamp terminals, removable terminal block |
| Cable Cross Section | 0.00…0.00 in² (0.2…1.5 mm²) - AWG 24...AWG 16 flexible without cable end 0.00…0.00 in² (0.2…2.5 mm²) - AWG 24...AWG 14 flexible without cable end 0.00…0.00 in² (0.25…1 mm²) - AWG 23...AWG 18 flexible with cable end, without bezel 0.00…0.00 in² (0.25…2.5 mm²) - AWG 23...AWG 14 flexible with cable end, with bezel 0.00…0.00 in² (0.25…2.5 mm²) - AWG 23...AWG 14 flexible with cable end, without bezel 0.00…0.00 in² (0.5…1.5 mm²) - AWG 20...AWG 16 flexible with cable end, with double bezel 0.00…0.00 in² (0.2…1 mm²) - AWG 24...AWG 18 solid without cable end 0.00…0.00 in² (0.2…2.5 mm²) - AWG 24...AWG 14 solid without cable end |
| Mounting Support | Omega 35 mm DIN rail EN 50022 |
| Width | 0.89 in (22.5 mm) |
| Height | 3.90 in (99 mm) |
| Depth | 4.51 in (114.5 mm) |
| Product Weight | 0.66 lb(US) (0.3 kg) |
| Product Certifications | TÜV RCM CULus |
| IP Degree Of Protection | IP20 |
| Ambient Air Temp For Op | 14…131 °F (-10…55 °C) |
| Ambient Air Temp For Storage | -4…185 °F (-20…85 °C) |
| Relative Humidity | 10…95 % |
| Pollution Degree | 2 |
| Insulation | 250 V AC between power supply and housing EN/IEC 61800-5-1 |
| Overvoltage Category | II |
| Electromagnetic Compatibility | Electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 Electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 Susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 Susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3 |
| Vibration Resistance | +/-0.35 mm 10…55 Hz)EN/IEC 61496-1 |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Service Life | 20 year(s) |
| Category | 22477 - SAFETY MODULES (PREVENTA) |
| Discount Schedule | SAF2 |
| GTIN | 00785901812463 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | IT |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pvc Free | Yes |
