Part Number | XVS96BMWP |
---|---|
Country of Origin | JP |
UPC | 606480072000 |
UPC11 | 60648007200 |
EAN | 3606480072000 |
Availability | N |
Lead Time | 39 |
ECCN | EAR99 |
HTs Code | 8531909001 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | XV |
Return Indicator | No |
Depth | 2.29 inch |
Height | 3.78 inch |
Width | 3.78 inch |
Weight | 0.88 pound |
Range Of Product | Harmony XVS |
---|---|

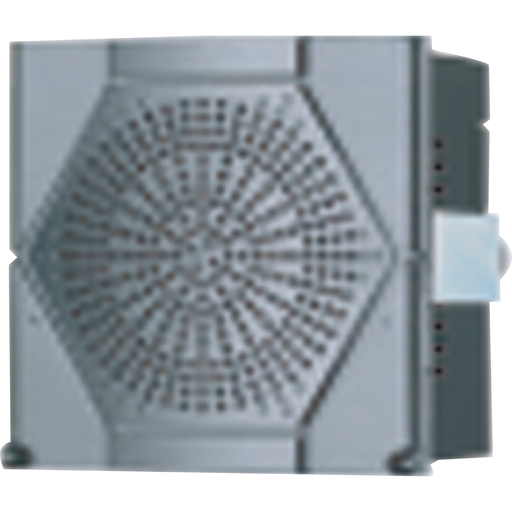

Product Or Component Type | Electronic alarm |
Device Short Name | XVS |
Colour | White |
Material | PC (polycarbonate) terminal cover PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene) body |
Product Weight | 0.88 lb(US) (0.4 kg) |
Marking | CE |
Overvoltage Category | Class II EN/IEC 61140 |
Mounting Support | 96 mm DIN rail |
[Us] Rated Supply Voltage | 12...24 V DC |
Uimp Rated Imp Wstd Voltage | 0.8 kV |
Current Consumption | 250 mA 12 V 292 mA 12 V 292 mA 24 V 354 mA 24 V |
Clamping Connection Capacity | <= 1 x 1.5 mm² |
Width | 3.78 in (96 mm) |
Height | 3.78 in (96 mm) |
Depth | 2.29 in (58.1 mm) |
Discrete Output Type | PNP |
Signalling Type | 16 tones alarm |
Standards | EN/IEC 60947-5-1 EN/IEC 60947-1 |
Protective Treatment | TC |
Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
Ambient Air Temp For Op | -4…122 °F (-20…50 °C) |
IP Degree Of Protection | Panel mounted IP54 EN/IEC 60529 |
Noise Level | 0…96 dB continuous or intermittent tone)1 m |
Category | 22617 - XVC TOWER LIGHTS |
Discount Schedule | XV |
GTIN | 03606480072000 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | JP |
Green Premium Status | Green Premium product |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Mercury Free | Yes |
Warranty | 18 months |
