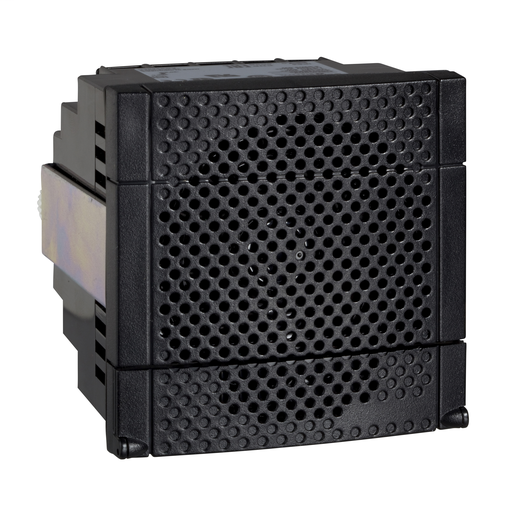

XVS72BMBN
Electronic alarm, black, NPN, mounting support DIN 72, 0…90 dB, 16 tones, 4 channels, 12…24 V AC DC
This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS. This multisound alarm provides 16 tones and is supplied pre-cabled. It can be supplied with 12V to 24V AC/DC and features NPN output type. It allows imple integration with your applications featuring a compact body that’s 20% thinner than the competition. Its protection index is IP54. It weighs 180g. It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It is CE, UL and CSA certified. It can be mounted on 72mm DIN rail.
Add to Quote CatalogueSpecifications
| Part Number | XVS72BMBN |
|---|---|
| Country of Origin | ID |
| UPC | 785901811176 |
| UPC11 | 78590181117 |
| EAN | 3606480032929 |
| Availability | S |
| Lead Time | 43 |
| UNSPSC | 32151501 |
| ECCN | EAR99 |
| HTs Code | 8531809041 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Depth | 2.73 inch |
| Height | 2.83 inch |
| Width | 2.83 inch |
| Weight | 0.40 pound |
Characteristics
| Range Of Product | Harmony XVS |
|---|---|
| Product Or Component Type | Electronic alarm |
| Device Short Name | XVS |
| Colour | Black |
| Material | ABS (acrylonitrile butadiene-styrene) body PC (polycarbonate) terminal cover |
| Product Weight | 0.40 lb(US) (0.18 kg) |
| Marking | CE |
| Overvoltage Category | Class II EN/IEC 61140 |
| Mounting Support | 72 mm DIN rail |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Uimp Rated Imp Wstd Voltage | 0.8 kV |
| Current Consumption | 117 mA 12 V 125 mA 24 V 158 mA 12 V 200 mA 24 V |
| Clamping Connection Capacity | <= 1 x 1.5 mm² |
| Width | 2.83 in (72 mm) |
| Height | 2.83 in (72 mm) |
| Depth | 2.73 in (69.3 mm) |
| Discrete Output Type | NPN |
| Signalling Type | 16 tones alarm |
| Standards | UL 464 EN/IEC 61000-6-3 EN/IEC 61000-6-2 |
| Product Certifications | UR |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temp For Op | 14…122 °F (-10…50 °C) |
| IP Degree Of Protection | Panel mounted IP54 EN/IEC 60529 |
| Noise Level | 0…90 dB continuous or intermittent tone)1 m |
| Category | 22617 - XVC TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901811176 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
