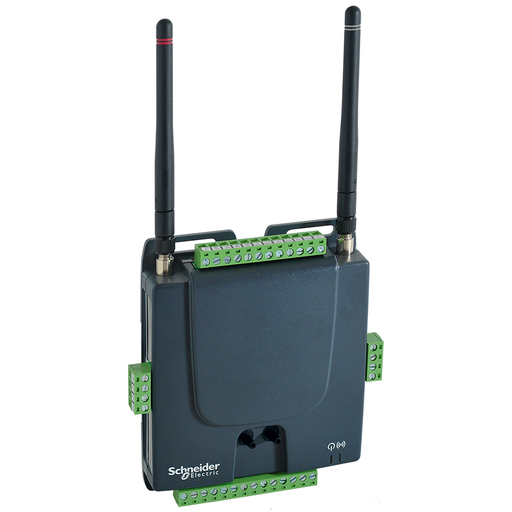

EBE – MPM VAV manager – 868 Mhz EnOcean – Zigbee high power – without actuator
MPM-VS-DI4-5045
EBE – MPM VAV manager – 868 Mhz EnOcean – Zigbee high power – without actuator
Specifications
Part Number MPM-VS-DI4-5045
UPC 711426074727
UPC11 71142607472
EAN 0711426074727
UNSPSC 43222634
Depth 1.34 inch
Height 5.2 inch
Width 4.96 inch
Characteristics
Range EcoStruxure Building Expert
Product Or Component Type VAV controller
Device Short Name MPM-VA
Device Application HVAC Metering Lighting
Supply External supply CSA
Sensor Type Flow sensor
Processor Name ARM9 32-bit 400 MHz
Battery Type Lithium 3 V
Range Compatibility zone controller
Communication Port Protocol BACnet Ethernet RJ45 10/100 Mbit/s CANbus 125...500 kbit/s EnOcean 868 MHz Modbus Zigbee Pro 250 kbps 2400…2483.5 MHz
Number Of Devices 16 ZigBee
Antenna Gain 2.5 dBi 2400…2483.5 MHz 0 dBi 0…868 MHz
Antenna Connector Type RP-SMA
Radio Power 8 dBm - 101 dBm - Zigbee 18 dBm - 105 dBm - Zigbee 5 dBm - 95 dBm - EnOcean
Operating Distance <= 100 ft open environment <= 300 ft open environment
[Us] Rated Supply Voltage 24 V AC 50/60 Hz +/- 15 % 24 V DC +/- 10 %
Number Of Inputs 6 universal
Configurable Analog Input configurable current 4...20 mA 14 bits configurable voltage 0...10 V 14 bits configurable PTC probe 1...100 kOhm 14 bits
Configurable Digital Input Dry contact
External Resistance 249 Ohm analog input current
Type Of Measurement Pressure - - 500…500 Pa +/- 3 % < +/- 0.1 Pa/year
Number Of Outputs 4 analog 2 relay
Input/Output Type Analog output 0...12 V, <= 50 mA, 12 bits Relay output 24 V, 1.1 A,
System Requirements Internet browser Google Chrome Apple Safari Firefox
Product Compatibility Smartphone Tablet PC
Power Consumption In W 1.6 W
Power Consumption In Va 5 VA
Communication Gateway Ethernet/ZigBee
Memory Capacity 64 MB flash 4 GB internal
Realtime Clock With battery 10000 h)
Connections - Terminals Screw connection
Mounting Mode Clip-on
Mounting Support Wall Ceiling DIN rail
Height 5.2 in (132.08 mm)
Width 4.96 in (125.98 mm)
Depth 1.34 in (34.04 mm)
Enclosure Material ABS
Web Server Embedded web page
Ambient Air Temp For Op 32…140 °F (-0…60 °C)
Ambient Air Temp For Storage -4…140 °F (-20…60 °C)
Relative Humidity 0…90 % non-condensing
Standards UL 916 CSA C22.2 No 205-M1983 ICES-003 FCC part 15 subpart B
Flame Retardance UL94V0-5VB
GTIN 00711426074727
EU RoHs Directive Not compliant
