| Range Of Product |

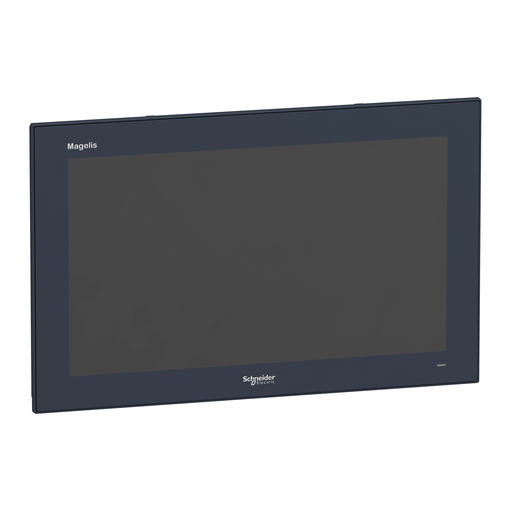

Harmony Modular iPC |
| Product Or Component Type |
Flat screen |
| Terminal Type |
Touchscreen display |
| Device Mounting |
Flush |
| Local Signalling |
Status LED |
| View Angle Horiz X Vert |
150 x 140° |
| Contrast Ratio |
500:1 |
| Pixel Resolution |
1366 x 768 |
| Touchscreen Resolution |
4096 x 4096 |
| Function Available |
Operate with water on screen |
| [Us] Rated Supply Voltage |
24 V DC power supply
100...240 V AC power supply 47...63 Hz |
| Supply Voltage Limits |
18…36 V DC |
| Power Consumption In W |
48.1 W typical)Box PC HMIBMP
63.28 W maximum)Box PC HMIBMP
43.1 W typical)Box PC HMIBMU
58.28 W maximum)Box PC HMIBMU |
| Display Size |
18.5 inch |
| Display Type |
Colour TFT LCD
LED |
| Display Resolution |
1366 x 768 pixels WHD FWXGA |
| Display Colour |
16777216 colors |
| Luminance |
27.87 fc (300 cd/m²) |
| Backlight Lifespan |
50000 hours 77 °F (25 °C) |
| Touch Panel |
Multi-touch projected capactive technology (PCT) |
| Type Of Installation |
Indoor installation |
| Inrush Current |
8.9 A |
| Width |
19.22 in (488.3 mm) |
| Height |
12.17 in (309 mm) |
| Depth |
Enclosure 1.10 in (28 mm)
0.28 in (7 mm) |
| Product Weight |
11.46 lb(US) (5.2 kg) |
| IP Degree Of Protection |
IP66 |
| Nema Degree Of Protection |
NEMA 4X |
| Standards |
UL 60950
CSA C22.2 No. 60950 |
| Product Certifications |
EAC
C-tick
CCC |
| Ambient Air Temp For Op |
32…131 °F (0…55 °C) |
| Ambient Air Temp For Storage |
-22…158 °F (-30…70 °C) |
| Pollution Degree |
2 |
| Relative Humidity |
10…95 % non-condensing |
| Operating Altitude |
6561.68 ft (2000 m) |
| Vibration Resistance |
1 gn 5…500 Hz)HDD
2 gn 5…500 Hz)SSD
2 gn 5…500 Hz)Cfast card |
| Category |
22574 - MAGELIS BOX PC AND PANEL PC |
| Discount Schedule |
MC2 |
| GTIN |
00785901469926 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
US |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
