9422RS1

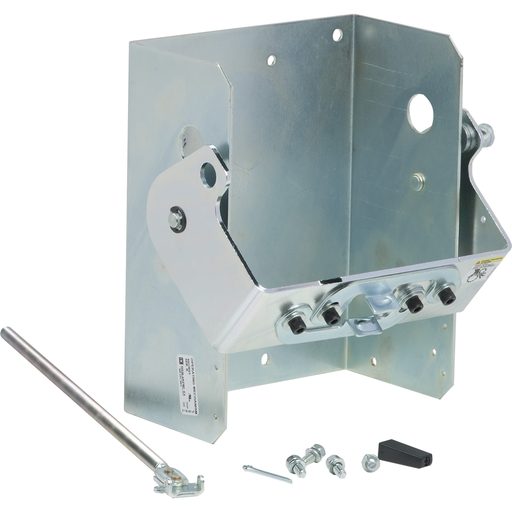

Disconnect Mechanism, circuit breaker, variable depth, 600A, 3 pole, operator only, for PowerPact D and L breakers
This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. Mechanism will work with PowerPact L circuit breakers. Circuit breakers is 3 pole with a frame size of 600 A. The variable depth mounting range is 7.44 to 18.25 inches. 9422A operating handle is ordered separately. Switch is UL component recognized and CSA certified.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9422RS1 |
|---|---|
| Country of Origin | MX |
| UPC | 785901551430 |
| UPC11 | 78590155143 |
| Availability | N |
| Lead Time | 5 |
| UNSPSC | 39122233 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
Characteristics
| Range | 9422R |
|---|---|
| Product | Circuit Breaker Mechanism |
| Mounting Type | Flange rod variable depth |
| Certifications | CSA UL Recognized |
| Circuit Breaker Type | MG-NSJ 3 PowerPact D 3 |
| Handle Type | Ordered separately |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901551430 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
