9422CSJD50

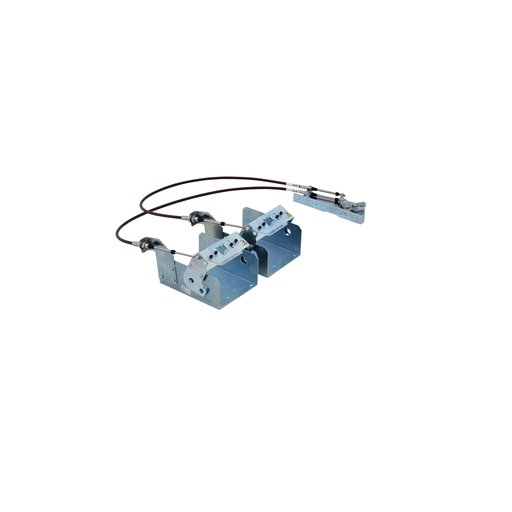

Disconnect mechanism, circuit breaker, cable operated, 600A, 3 pole, PowerPact D and L breaker, two 60 inch cables
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with Compact NSJ, PowerPact D and PowerPact L circuit breakers. Circuit breakers is 3 pole with a frame size of 250 and 600 A. Dual cable operating mechanisms are designed for use with Square D circuit breakers. This cable mechanism allows a single handle operator to operate two circuit breakers. This mechanism has two 60 inch long cables. Must use a 9422AP1 or 9422AP2 operating handle with this operating mechanism.
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9422CSJD50 |
|---|---|
| Country of Origin | MX |
| UPC | 785901511793 |
| UPC11 | 78590151179 |
| EAN | 0785901511793 |
| Availability | N |
| UNSPSC | 39122233 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
Characteristics
| Range | 9422C |
|---|---|
| Product | Dual Cable Operating Mechanism |
| Circuit Breaker Type | MG-NSJ 3 PowerPact D or L 3 |
| Included | Ordered separately |
| Number Of Cables | 2 |
| Cable Length | 60 in and 60 in |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901511793 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
