9422CLA31
Disconnect mechanism, circuit breaker, cable operated, 400A, 2 or 3 pole, LAL, LHL breaker, 36 inch cable, A1 handle

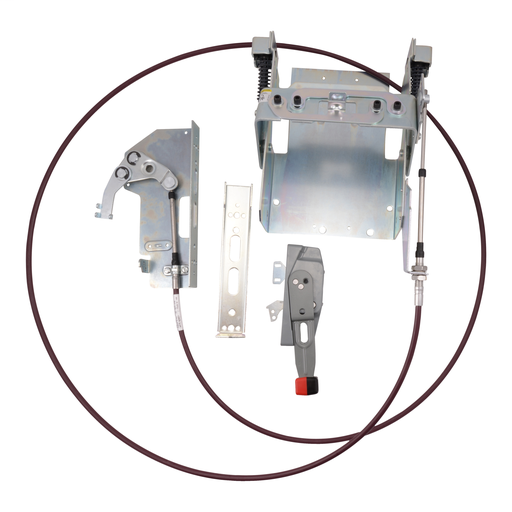

The 9422C flexible cable mechanisms are for use with Square D circuit breakers and 9422 A1 handle mechanisms. This mechanism is for 2 or 3 pole LAL or LHL circuit breakers with a 400A frame size. The mechanism comes with a 36 inch long cable. This mechanism is designed for tall, deep enclosures where placement flexibility is required. An 9422A1 handle mechanism is used with this cable operated mechanism. The handle is rated NEMA 1, 3, 3R and 12. Cable operated mechanism is UL Component Recognized and CSA certified
Brand: Square D
Add to Quote CatalogueSpecifications
| Part Number | 9422CLA31 |
|---|---|
| Country of Origin | MX |
| UPC | 785901353249 |
| UPC11 | 78590135324 |
| EAN | 0785901353249 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39122233 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CP1 |
| Return Indicator | Yes |
Characteristics
| Range | 9422C |
|---|---|
| Product | Single Cable Operating Mechanism |
| Circuit Breaker Type | LAL/LHL 2 LAL/LHL 3 Q4L 2 Q4L 3 |
| Included | 6 in handle included |
| Number Of Cables | 1 |
| Cable Length | 36 in |
| Category | 21732 - 9422 |
| Discount Schedule | CP1 |
| GTIN | 00785901353249 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Warranty | 18 months |
