METSECT5VV600

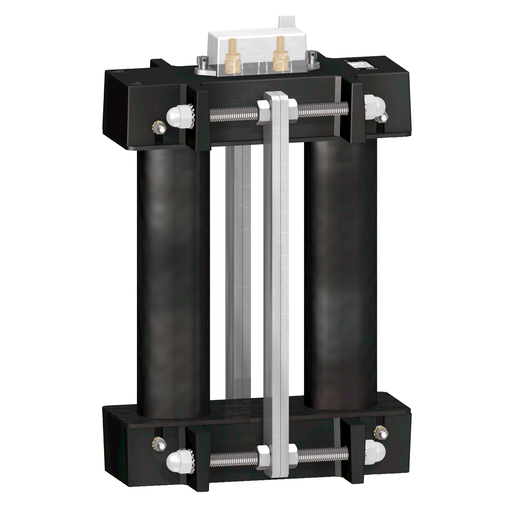

Current transformer tropicalised 6000 5 for bars 55×165
This current transformer, tropicalised for busbar, has a line rated current of 6000 A and a secondary current rating of 5 A. This current transformer do have a 55 mm x 165 mm opening. Compatible with a single output for bar: 165 mm x 55 mm. Burden and accuracy class as follows: class 0.5 maximum power: 70 VA.
Add to Quote CatalogueSpecifications
| Part Number | METSECT5VV600 |
|---|---|
| Country of Origin | IT |
| UPC | 303431123827 |
| UPC11 | 30343112382 |
| EAN | 3303431123827 |
| Availability | N |
| Lead Time | 44 |
| UNSPSC | 39121032 |
| ECCN | EAR99 |
| HTs Code | 8504312000 |
| Discount Schedule | DE2F |
| Return Indicator | No |
| Depth | 4.33 inch |
| Height | 9.53 inch |
| Width | 6.89 inch |
| Weight | 7.50 pound |
Characteristics
| Range | PowerLogic |
|---|---|
| Product Name | CT |
| Product Or Component Type | Current transformer |
| Secondary Current | 5 A |
| Accuracy Class | Class 0.5 70 VA |
| In Rated Current | 6000 A |
| Current Transformer Type | Tropicalised for busbar |
| Current Transformer Ratio | 6000/5 |
| Ith Cnvtl Free Air Therm Crrt | 60 kA |
| Dynamic Withstand Current | 2.5 Ith |
| Safety Factor | 10 |
| Ue Rated Operational Voltage | < 720 V AC 50/60 Hz |
| Ui Rated Insulation Voltage | 3 kV |
| Mounting Mode | Insulated locking screw |
| Mounting Support | Busbar |
| Width | Outside 6.89 in (175 mm) Inner 2.17 in (55 mm) |
| Height | Outside 9.53 in (242 mm) Inner 6.50 in (165 mm) |
| Depth | Total 4.33 in (110 mm) |
| Product Weight | 7.50 lb(US) (3.4 kg) |
| Uimp Rated Imp Wstd Voltage | 3 kV |
| Electrical Insulation Class | Class B |
| Opening Of Bars | 165 x 55 |
| Sealing | With |
| Standards | IEC 61869-2 VDE 0414 |
| Product Certifications | EAC CE |
| IP Degree Of Protection | IP20 |
| Relative Humidity | 0…95 % |
| Ambient Air Temp For Op | -13…122 °F (-25…50 °C) |
| Category | 01290 - MASTERPACT ACCESSORIES |
| Discount Schedule | DE2F |
| GTIN | 03303431123827 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | IT |
| EU RoHs Directive | Compliant |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
