9001BG302

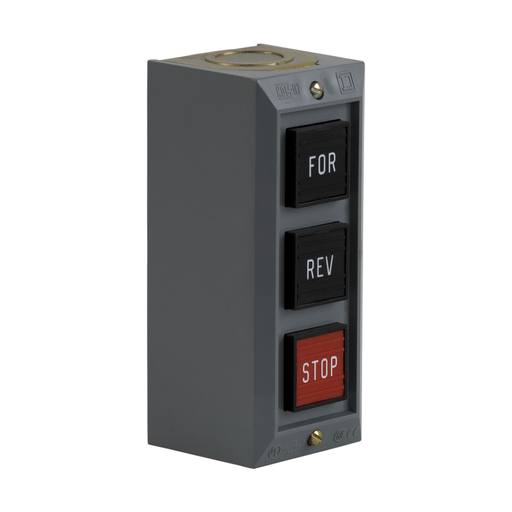

CONTROL STATION 600VAC 5A T-B FORWARD-REVERSE-STOP
Specifications
| Part Number | 9001BG302 |
|---|---|
| Country of Origin | MX |
| UPC | 785901390305 |
| UPC11 | 78590139030 |
| EAN | 0785901390305 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39121565 |
| HTs Code | 8537109170 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony 9001B |
|---|---|
| Product Or Component Type | Complete control station |
| Device Short Name | 9001BG |
| Control Station Composition | 3 push-buttons FORWARD-REVERSE-STOP |
| Contacts Type And Composition | 2 NO + 3 NC |
| Connections - Terminals | Screw clamp terminal |
| Ie Rated Operational Current | 5 A 600 V |
| Device Mounting | Surface |
| Type Of Installation | Indoor |
| Nema Degree Of Protection | NEMA 1 |
| Product Certifications | CE UL listed file E42259 CCN NKCR CSA LR25490 class 3211 03 |
| Environmental Characteristic | Standard environment |
| Category | 21421 - 9001 B (NOT BW70 - BW80) |
| Discount Schedule | CS1 |
| GTIN | 00785901390305 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
