| Range Of Product |
Harmony XB4
Harmony XB5 |

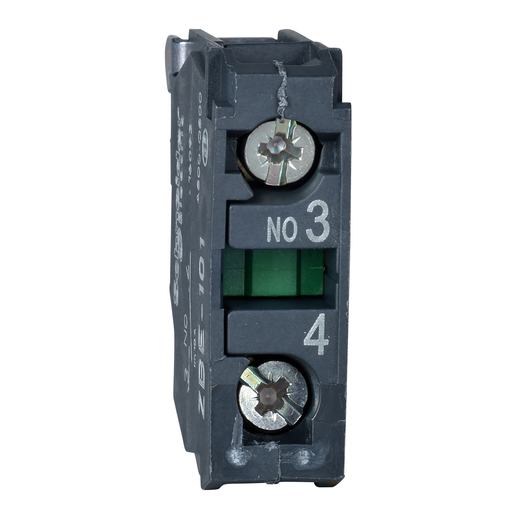

| Product Or Component Type |
Contact block |
| Device Short Name |
ZBE |
| Sale Per Indivisible Qty |
100 |
| IP Degree Of Protection |
IP20 IEC 60529 |
| Contacts Type And Composition |
1 NO |
| Contact Operation |
Slow-break |
| Contact Block Type |
Single |
| Contacts Usage |
Standard contacts |
| Connections - Terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Positive Opening |
Without |
| Operating Travel |
0.10 in (2.6 mm) NO changing electrical state)
0.17 in (4.3 mm) total travel) |
| Operating Force |
2.3 N NO changing electrical state |
| Mechanical Durability |
10000000 cycles |
| Tightening Torque |
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head |
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm |
| Contacts Material |
Silver alloy (Ag/Ni) |
| Short-Circuit Protection |
10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage |
600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage |
6 kV EN 60947-1 |
| Ie Rated Operational Current |
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability |
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability |
Λ < 10exp(-7), 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8), 5 mA in clean environment EN/IEC 60947-5-4 |
| Mounting Of Block |
Front mounting |
| Condition Of Use |
Mounting on push-button collar |
| Electrical Composition Code |
C1 9)
C2 7)
C3 6)
C4 4)
C5 5)
C6 3)
C7 4)
C8 2)
C9 3)
C12 6)
M1 6)
M2 4)
M3 4)
M5 2)
M6 2)
M7 6)
M8 4)
M9 2)
SF1 3)
SF2 2)
MF1 2)
MF2 2)
C10 2)
M4 2)
C13 1) |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Standards |
UL 508
CSA C22.2 No 14
JIS C8201-5-1
EN/IEC 60947-5-4
EN/IEC 60947-1
EN/IEC 60947-5-1
JIS C8201-1 |
| Product Certifications |
CCC
LROS (Lloyds register of shipping)
BV
GL
DNV
GOST
RINA
UL
CSA |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category |
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901835806 |
| Nbr. Of Units In Pkg. |
100 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
