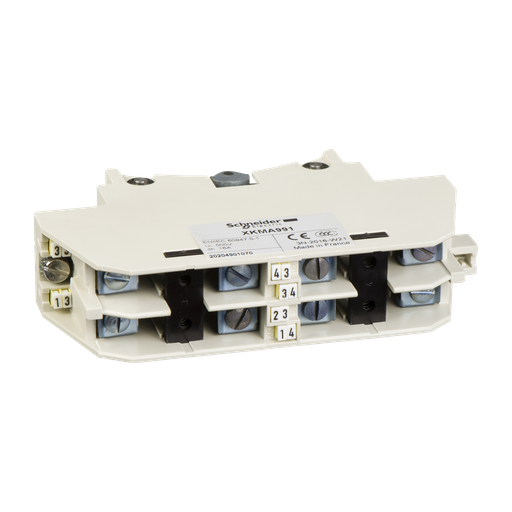

XKMA991
Contact block – standard contact blow-out – compatible with XKM
This XKMA991 is a contact block compatible with XKM joystick controller. It is part of the range Harmony XK joystick controllers and controller stations. It has a standard contact blow-out.
Add to Quote CatalogueSpecifications
| Part Number | XKMA991 |
|---|---|
| Country of Origin | FR |
| UPC | 785901661306 |
| UPC11 | 78590166130 |
| EAN | 3389110661309 |
| Availability | N |
| Lead Time | 22 |
| UNSPSC | 39122227 |
| ECCN | EAR99 |
| HTs Code | 8536509065 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | No |
| Weight | 0.68 pound |
Characteristics
| Product Or Component Type | Controllers separate parts |
|---|---|
| Accessory / Separate Part Cate | Control accessory |
| Product Specific Application | Heavy hoisting applications |
| Product Compatibility | XKM |
| Accessory / Separate Part Type | Contact block |
| Number Of Contacts | 4 |
| Contact Blow-Out Type | Standard |
| Electrical Connection | Screw clamp terminal 1 x 1.5...2 x 2.5 mm² |
| Contact Operation | Slow-break Double-break |
| Ith Cnvtl Free Air Therm Crrt | 20 A IEC 337-1 20 A NF C 63-140 20 A VDE 0660 |
| Ui Rated Insulation Voltage | 500 V AC/DC IEC 158-1 500 V AC/DC NF C 20-040 500 V AC/DC VDE 0110 600 V CSA C22.2 No 14 |
| Positive Opening | With |
| Resistance Across Terminals | 25 MOhm 1 A NF C 93-050 |
| Short-Circuit Protection | 20 A cartridge fuse gG IEC 337-1B 20 A cartridge fuse gG VDE 0660 part 2 |
| Electrical Durability | 3000000 cycles DC inductive 120 V 75 IEC 337-1 DC-11 60 cyc/mn 0.5 3000000 cycles DC inductive 24 V 70 IEC 337-1 DC-11 60 cyc/mn 0.5 3000000 cycles DC inductive 48 V 75 IEC 337-1 DC-11 60 cyc/mn 0.5 |
| Product Weight | 0.68 lb(US) (0.31 kg) |
| Standards | CENELEC EN 50013 |
| Category | 22474 - PUSHBUTTON,CRANE JOYSTICKS |
| Discount Schedule | I |
| GTIN | 00785901661306 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
