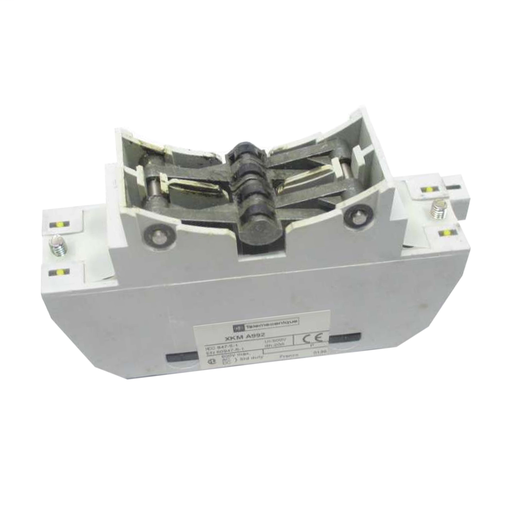

XKMA992
Contact block – magnetic contact blow-out – compatible with XKM
This block of 4 contacts is a separate component of the range Harmony XK, XD controllers. It provides double-break with magnetic blow-out contact operation. It features screw clamp connection type. It is compatible with XKM controller. It weighs 335g. It is designed for heavy hoisting applications. It is CENELEC EN 50013 compliant.
Add to Quote CatalogueSpecifications
| Part Number | XKMA992 |
|---|---|
| Country of Origin | FR |
| UPC | 785901233282 |
| UPC11 | 78590123328 |
| EAN | 3389110929935 |
| Availability | N |
| Lead Time | 20 |
| UNSPSC | 39122227 |
| ECCN | EAR99 |
| HTs Code | 8536509065 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Discount Schedule | I |
| Return Indicator | No |
| Weight | 0.74 pound |
Characteristics
| Product Or Component Type | Controllers separate parts |
|---|---|
| Accessory / Separate Part Cate | Control accessory |
| Product Specific Application | Heavy hoisting applications |
| Product Compatibility | XKM |
| Accessory / Separate Part Type | Contact block |
| Number Of Contacts | 4 |
| Contact Blow-Out Type | Magnetic |
| Electrical Connection | Screw clamp terminal 1 x 1.5...2 x 2.5 mm² |
| Contact Operation | Double-break Slow-break |
| Ith Cnvtl Free Air Therm Crrt | 20 A IEC 337-1 20 A NF C 63-140 20 A VDE 0660 |
| Ui Rated Insulation Voltage | 500 V AC/DC IEC 158-1 500 V AC/DC NF C 20-040 500 V AC/DC VDE 0110 600 V CSA C22.2 No 14 |
| Positive Opening | With |
| Resistance Across Terminals | 25 MOhm 1 A NF C 93-050 |
| Short-Circuit Protection | 20 A cartridge fuse gG IEC 337-1B 20 A cartridge fuse gG VDE 0660 part 2 |
| Electrical Durability | 3000000 cycles DC inductive 120 V 100 IEC 337-1 DC-11 60 cyc/mn 0.5 3000000 cycles DC inductive 24 V 90 IEC 337-1 DC-11 60 cyc/mn 0.5 3000000 cycles DC inductive 48 V 100 IEC 337-1 DC-11 60 cyc/mn 0.5 |
| Product Weight | 0.74 lb(US) (0.335 kg) |
| Standards | CENELEC EN 50013 |
| Category | 22474 - PUSHBUTTON,CRANE JOYSTICKS |
| Discount Schedule | I |
| GTIN | 00785901233282 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
