| Range Of Product |
ConneXium |
| Product Or Component Type |

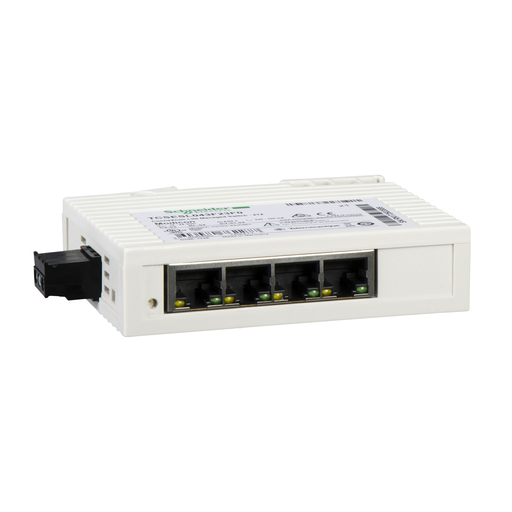

Ethernet TCP/IP managed switch |
| Concept |
Transparent Ready |
| Communication Port Protocol |
Ethernet TCP/IP
HTTP
HTTPS
SNMP
RSTP
LLDP |
| Port Ethernet |
10BASE-T/100BASE-TX - 4 copper cable |
| Max Num Of Swtchs In Cascade |
Unlimited |
| Integrated Connection Type |
Shielded RJ45 copper cable |
| Transmission Support Medium |
Twisted shielded pairs cable CAT 5E copper cable |
| Cable Distance Between Devices |
328.08 ft (100 m) copper cable |
| Ethernet Service |
Data stream control
Secure port
Configuration via web server
VLAN
Multicast filtering
SNMP-Traps |
| Communication Service |
TFTP |
| Diagnostics Run Time |
Log file |
| Max Num Of Switches In A Ring |
50 |
| Us Rated Supply Voltage |
24 V |
| Supply Voltage Limits |
9.6…60 V DC SELV
18…30 V AC SELV |
| Power Consumption In W |
2.35 W |
| Electrical Connection |
Removable connector 3 ways power supply |
| Mounting Support |
35 mm symmetrical DIN rail |
| Marking |
CE |
| Local Signalling |
Device status 1 LED
Copper port activity 1 LED per channel
Copper port status 1 LED per channel |
| Alarm Output |
1 voltfree contact 1 A |
| Alarm Function |
Data link status
Power supply fault
Switch fault |
| Ethernet Cabling System |
TF switches |
| Mtbf Reliability |
497250.0 H |
| Width |
1.85 in (47 mm) |
| Height |
5.16 in (131 mm) |
| Depth |
4.37 in (111 mm) |
| Product Weight |
0.88 lb(US) (0.4 kg) |
| Ambient Air Temp For Op |
32…140 °F (0…60 °C) |
| Relative Humidity |
10…95 % without condensation |
| IP Degree Of Protection |
IP30 |
| Directives |
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive |
| Standards |
UL 1604 Class 1 Division 2
EN/IEC 61131-2
CSA C22.2 No 213 Class I Division 2
CSA C22.2 No 214
UL 508 |
| Category |
18225 - PLC NTWRK HRDWR & PROWORX SOFTWARE |
| Discount Schedule |
PC41 |
| GTIN |
03606480762277 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
DE |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
